The DiGiCo Quantum 225DS Pulse is a 96 channel mixing console with 25 physical faders and 2 x 17” LCD high-resolution touchscreens. Like its larger counterpart, the Quantum 338, the Quantum 225DS offers all of the Quantum features plus new design features and enhancements in a smaller format console.

• 96 Input channels with full processing

• 48 Aux/Sub-Group busses with full processing

• 12×12 Matrix with full processing

• 36 insertable Mustard processing strips

• 48 Nodal processing instances

• True Solo function

• 41 TFT LCD displays

• 2 x 17” high-brightness, high-resolution touchscreens

• Assignable channel layout

• User programmable macros

• Capable of redundantly mirroring with another Quantum 225 console

• Redundant PSUs as standard

• Snapshots for seamlessly changing many parameters at once

• 2 DMI Slots to expand the I/O as desired

• Integrated UB MADI

• Offline software

• iPad control

• Mix Minus

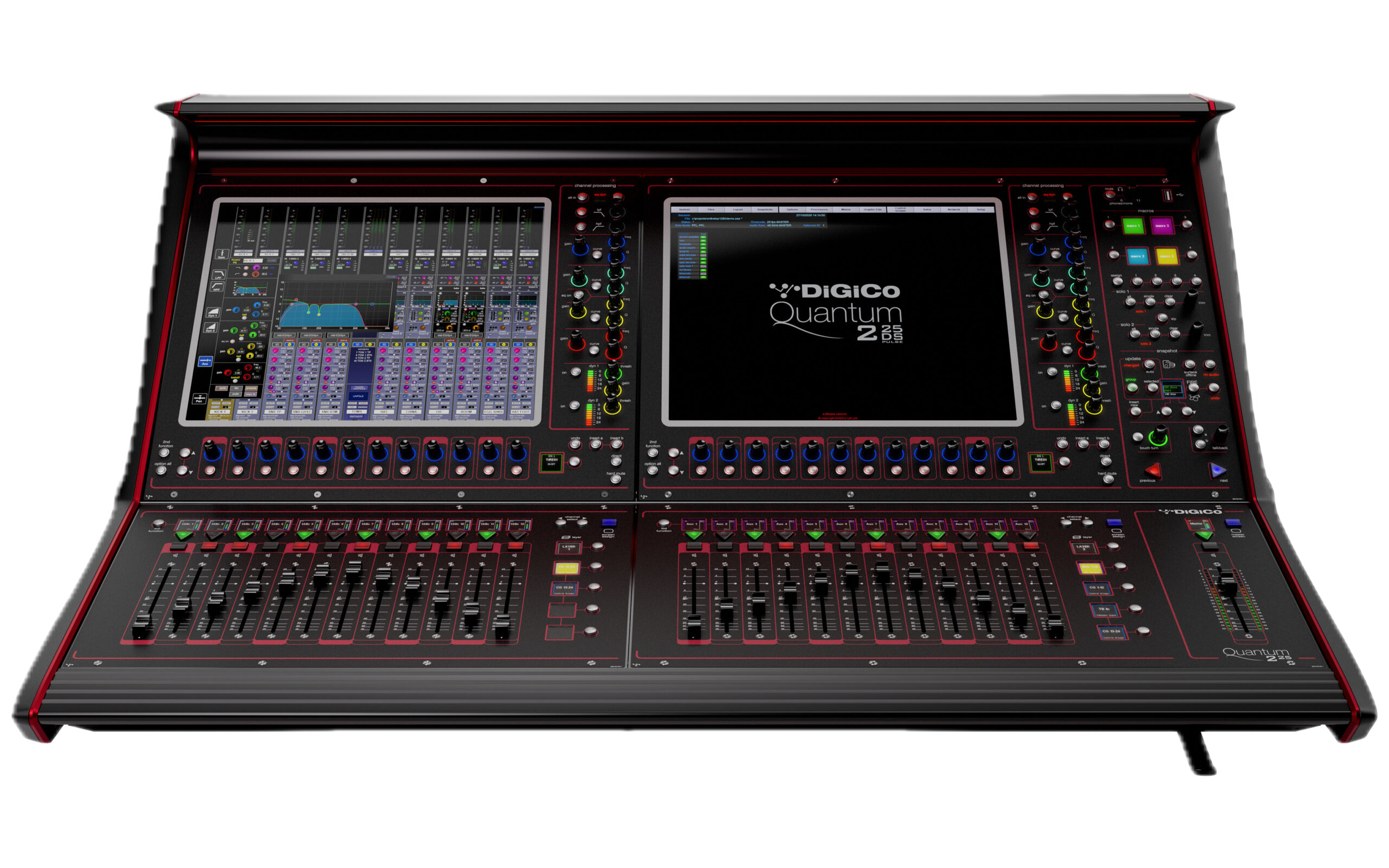

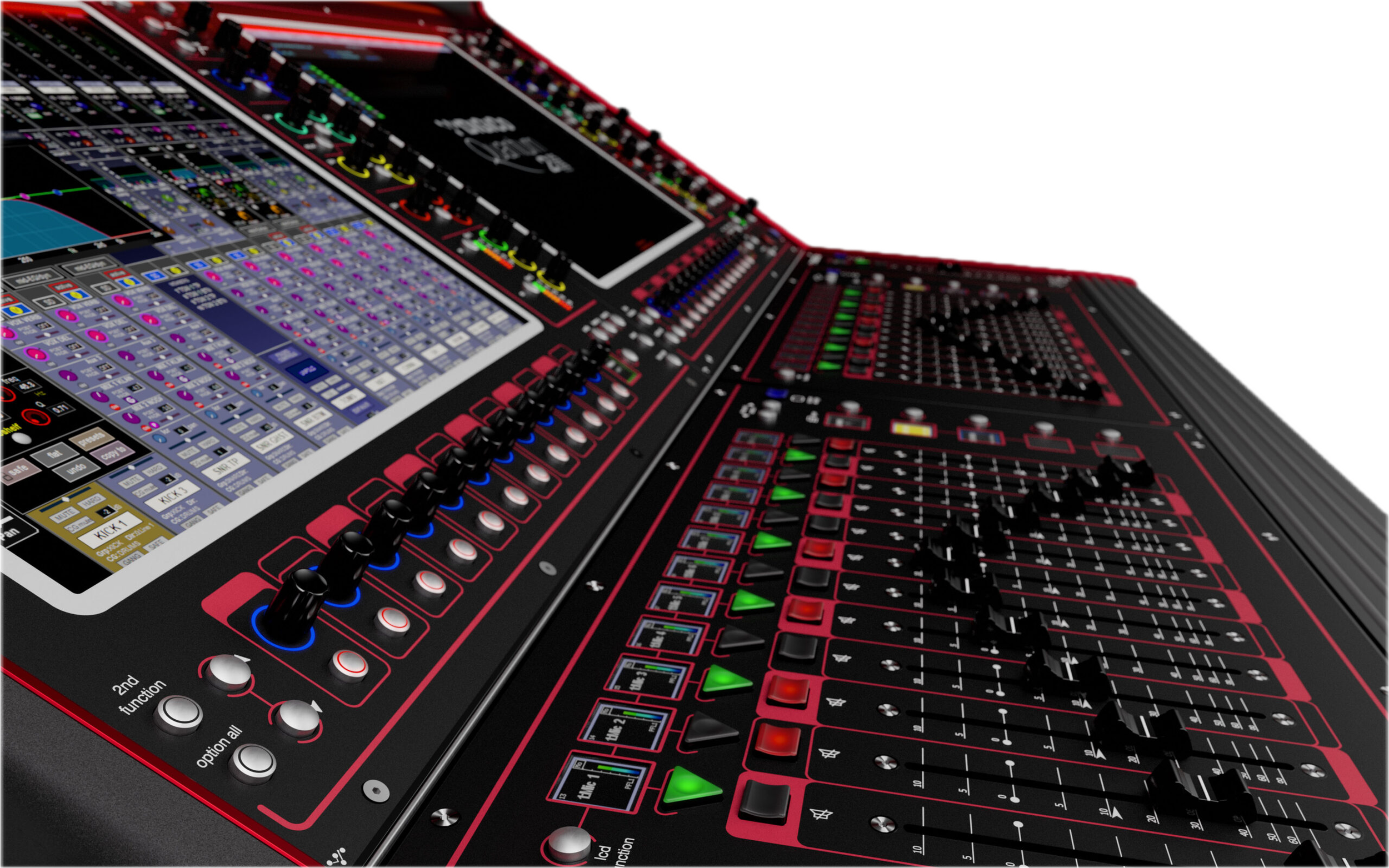

WORKSURFACE

• 25 x 100mm touch-sensitive, motorised faders

• 2 x 17” LCD high-brightness, high-resolution touchscreens

• (Master Screen on the right)

• 41 x Full Colour TFT LCD Displays

• 1 x ¼” Headphone socket

• 1 x 3.5mm Headphone socket

• 1 x USB 2.0 slot

• Keyboard Light Bar

• Integrated Light Bar

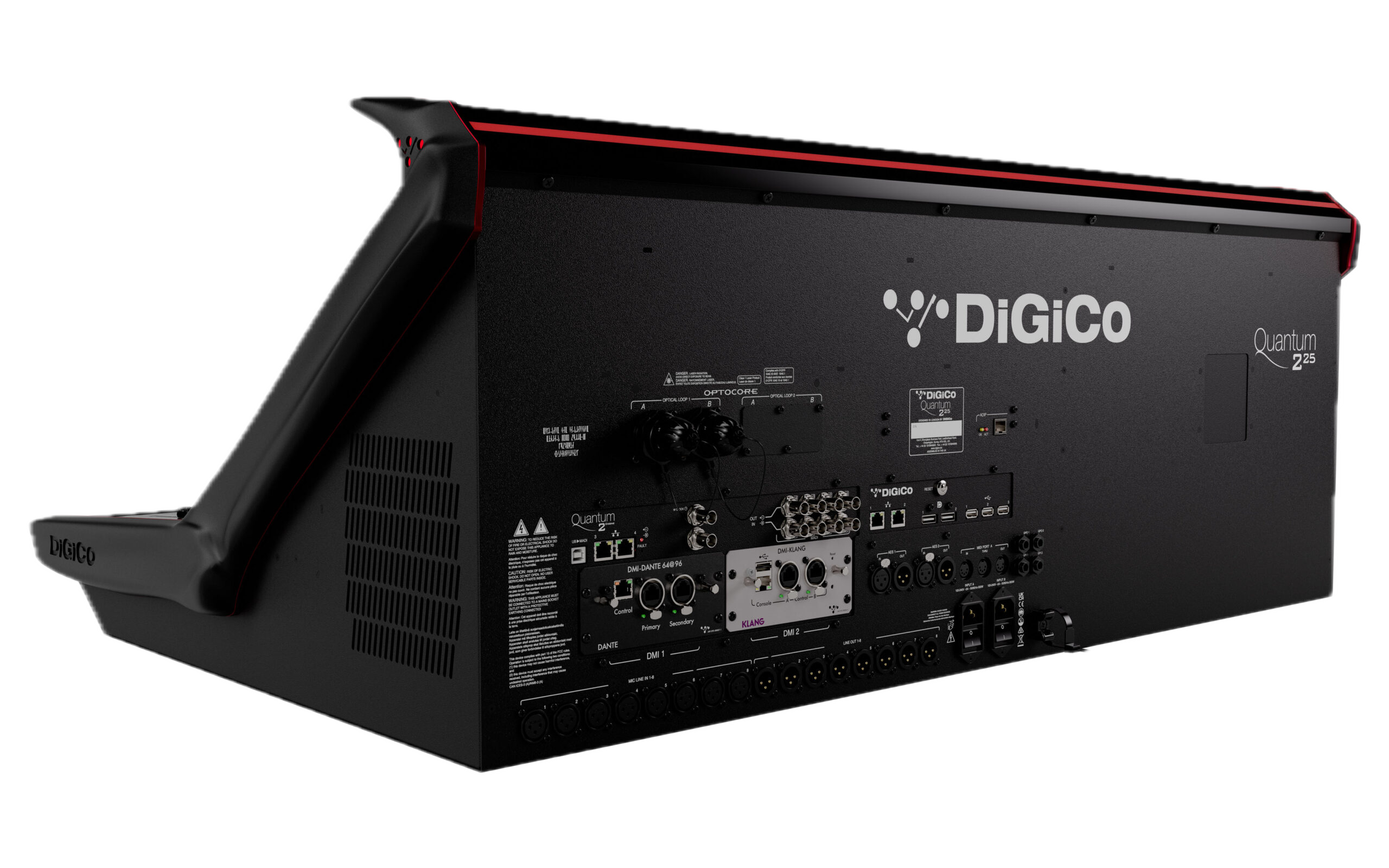

REAR

• 2 x Redundant PSUs

• 8 x XLR Mic/Line Inputs

• 8 x XLR Line Outputs

• 2 x XLR AES/EBU Inputs (4 x channels)

• 2 x XLR AES/EBU Outputs (4 x channels)

• 4 x MADI BNC I/O @ 48k, 2 interfaces at 96k

• 2 x MultiMode Optocore Interfaces (Optional)

• 1 x fourier audio port (Optional )

• 1 X Waves port (Optional)

• 2 x DMI Slots (up to 64 I/O per slot)

• 1 x UB MADI (USB Type B Audio I/O interface for recording

• and playback of up to 48 channels)

• 4 x Ethernet ports (switched together)

• 3 x USB 2.0 slots

• 2 x GPI 1/4” Jacks

• 2 x GPO 1/4” Jacks

• 1 x MIDI In/Thru/Out (5 pin DIN)

• 1 x Word Clock I/O BNC

• 2 x DisplayPort Outputs

• 1 x Quantum Lighting Bar

OPTIONS

• Single or Dual Loop Optocore (HMA, OpticalCon or ST)

• Upgrade to SingleMode Optocore

• Waves Soundgrid Interface fourier audio Interface

• Flightcase

• Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC /Dante / Dante 64@96 / Hydra 2 / KLANG / MADI B / MADI C / ME / Mic / Waves

SIGNAL PROCESSING

• 96 Input Channels (Mono)

  • Main & Alternative input

  • Analogue Gain

  • Phase Inversion Control

  • Gain Tracking

  • Digital Trim (-40dB to +40dB)

  • Variable Delay (0ms to 1.3s)

  • DiGiTube

  • HPF/LPF (-24dB/Oct)

  • 4 Band Parametric EQ / Dynamic EQ

  • DYN 1: Compressor, Multiband Compressor, Desser

  • DYN 2: Gate, Duck, External Input Compressor

  • EQ/Dyn Order Control

  • 2 Insert Points per Channel

  • Channel Mute & Hard Mute

  • Channel Direct Outputs

• 48 Aux/Sub-Group Busses

  • Phase Inversion Control

  • Digital Trim (-20dB to +60dB)

  • Variable Delay (0ms to 1.3s)

  • DiGiTube

  • Merge Input

  • Tone Generator

  • HPF/LPF (-24dB/Oct)

  • 8 Band EQ: 4 Band Parametric EQ and 4 Band

  • Parametric or Dynamic EQ

  • DYN 1: Compressor, Multiband Compressor, Desser

  • DYN 2: Gate, Duck, External Input Compressor

  • EQ/Dyn Order Control

  • 2 Insert Points per Channel

  • Channel Mute & Hard Mute

• 1 LR/LCR/LCRS/5.1 Master Buss (with full processing)

• 12 input x 12 output Full Processing Matrix

• 12 Control Groups (CGs)

• 2 Solo Busses

• 16 x 32-band GEQs

• 12 x Internal Stereo FX Processors

  • Delays

  • Audio Enhancer

  • Choruses

  • Pitch Shifters

  • Reverbs

• 6 x Internal Spice Rack Slots

  • 6 band Dynamic Multiband Compressor/Expander

  • 6 band Dynamic EQ

• 36 x Mustard Processing Strips

  • Tube

  • Tube Emulation

  • HPF/LPF (-24dB/Oct)

  • 4 Band EQ: 2 Band Parametric EQ and 2 Band

  • Parametric EQ or All Pass Filters

  • DYN 1: Classic RMS/Peak Compressor, Vintage VCA

  • Compressor, Optical Compressor, FET Limiter

  • DYN 2: Gate, Ducker

• 48 x Nodal Processing

  • 4 Band Parametric EQ / Dynamic EQ

  • DYN 1: Compressor, Multiband Compressor, Desser

  • DYN 2: Gate, Duck, External Input Compressor

• Multiband Compressors available on every channel, Buss and Nodal Processor

• Dynamic EQs available on every channel, Buss and Nodal

• Processor

• DiGiTuBes available on every channel & Buss

• Virtual Soundcheck

• True Solo function

AUDIO SPECIFICATIONS

• Sample Rate: 48kHz or 96kHz

• Processing Delay: 2ms @ 48kHz, 1ms @ 96kHz

• Internal Processing: Up to 40-bit, Floating Point

• A>D & D>A: 24-bit Converter Bit Depth

• Frequency Response: (Mic In to Line Out): +/-0.25dB (20Hz -20kHz)

• THD+N: Mic In to AES Out): <0.003% (-10dBFS out, 0dB gain, 22Hz-20kHz)

• THD+N: (AES In to Line Out): <0.003% (+16dBu out, 22Hz -20kHz)

• Channel Separation (Mic In to Line Out): >100dB @ 10kHz

• Residual Output Noise: <-94dBu (22Hz-20kHz, A-weighted)

• Equivalent Input Noise (EIN): <-127dBu (22Hz-20kHz, A-weighted)

• Maximum Input Level: +22dBu

• Maximum Output Level: +22dBu

PHYSICAL

• Dimensions: 1124mm (w) x 801mm (d) x 436mm (h)

• Weight: 45kg (140kg with optional flightcase)

• Flightcase: 1260mm (w) x 601mm (d) x 1141mm (h) (Optional)

• Power Requirements: 100-240V, ~5A, 50-60Hz, 300W, 255VA

• Redundancy: Internal PSUs x 2

• Product Code: X-Q225-WS-DS
