Digico quantum 338

pulse

Request a Quote

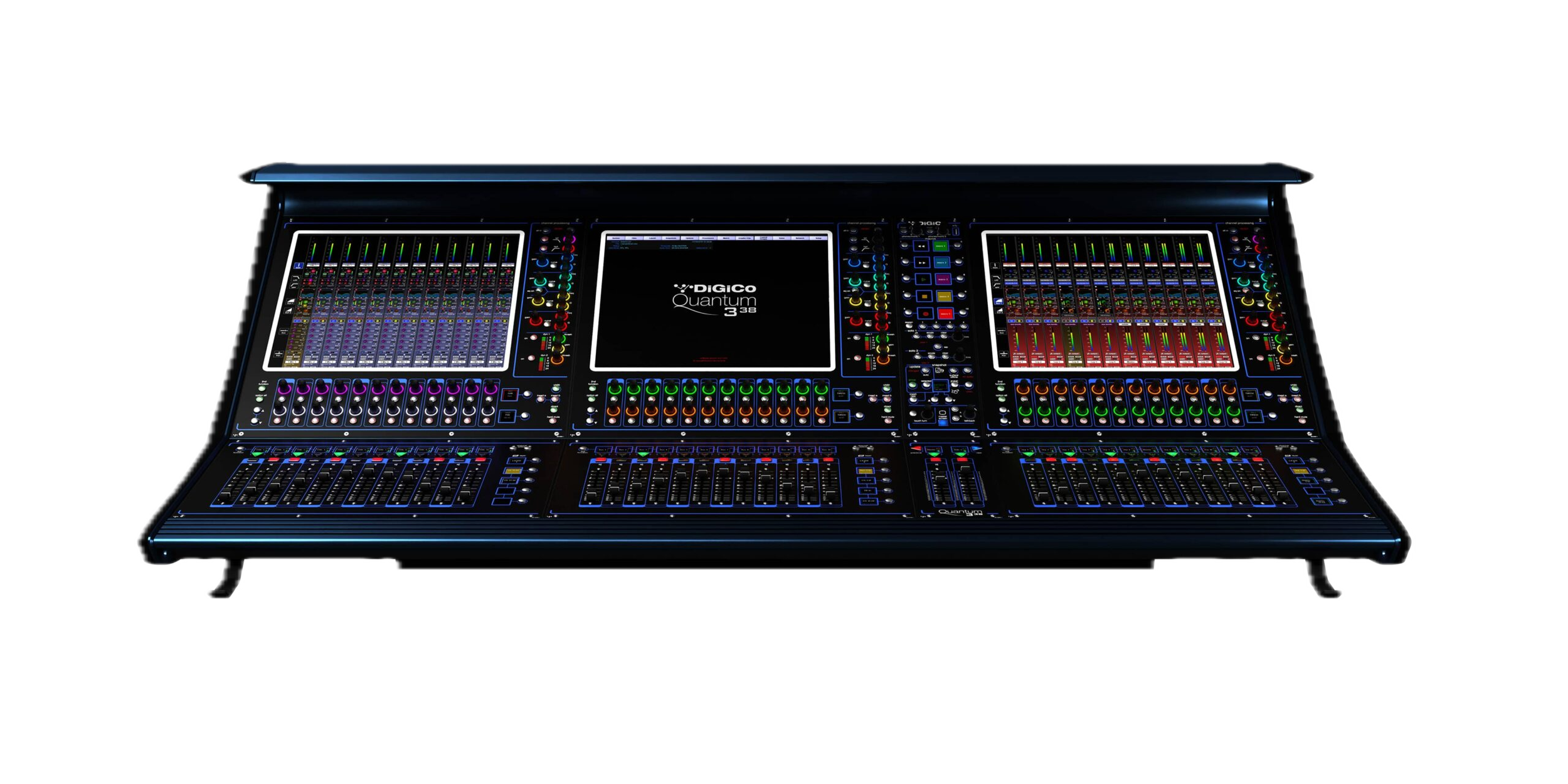

  • Digico 338 audio mixing console with numerous sliders, knobs, and colorful controls on a black background.

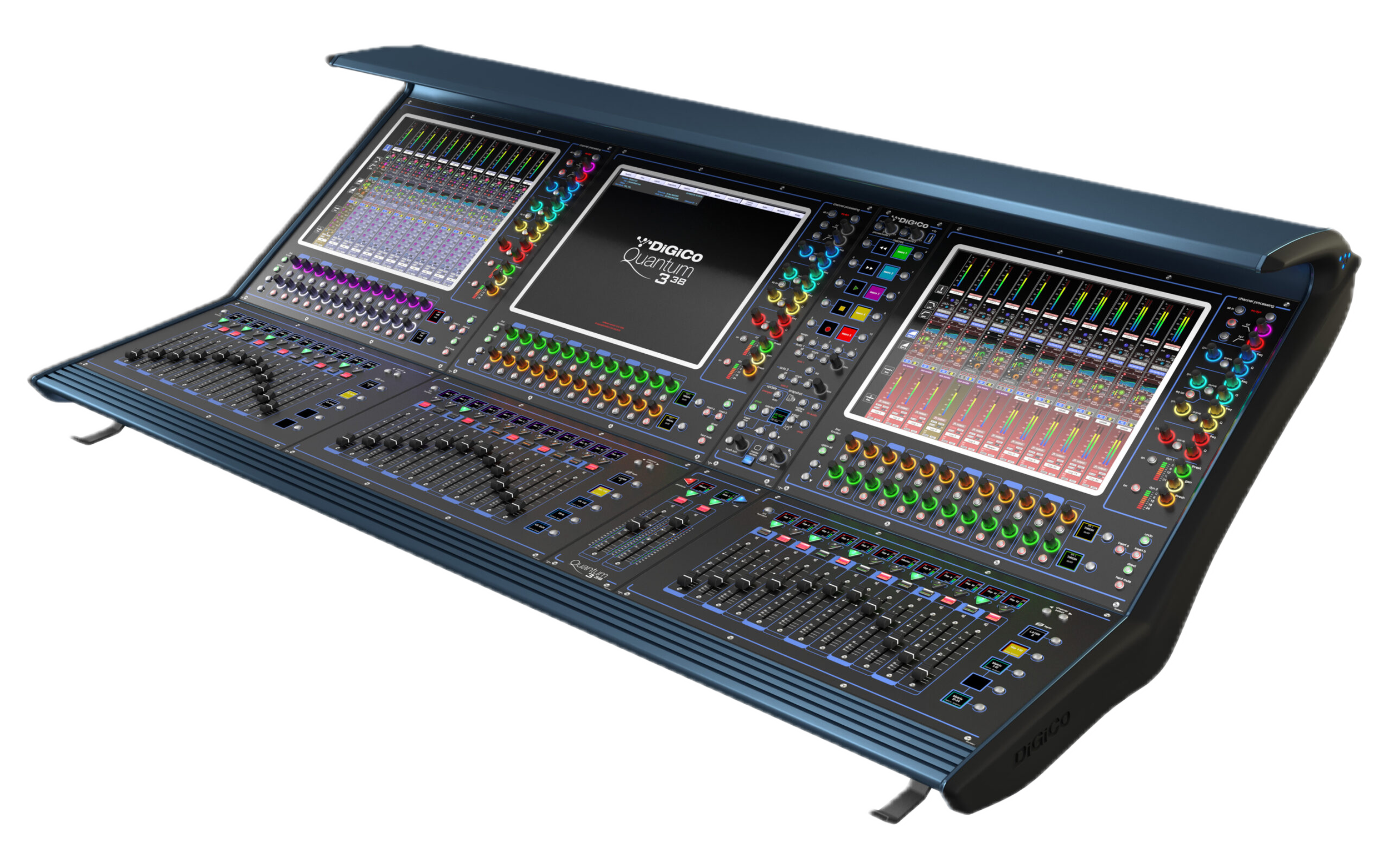

  • Digico 338 audio mixing console with colorful faders and knobs, brand Digico, used in sound engineering for live or studio audio.

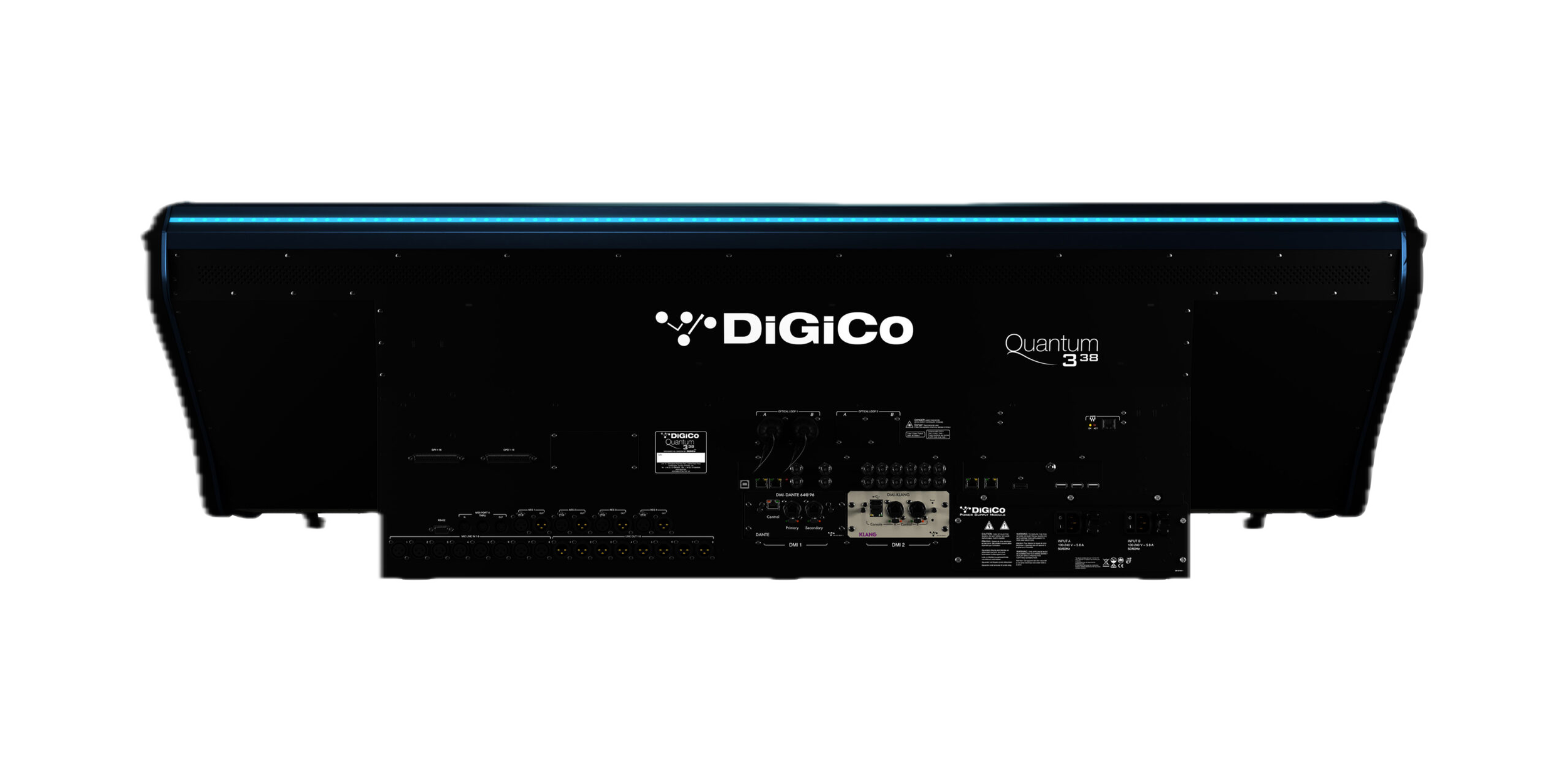

  • Back view of a large black audio equipment unit with various input and output ports, cables connected, and the brands 'DiGiCo' and 'Quantum 338' labeled on it.

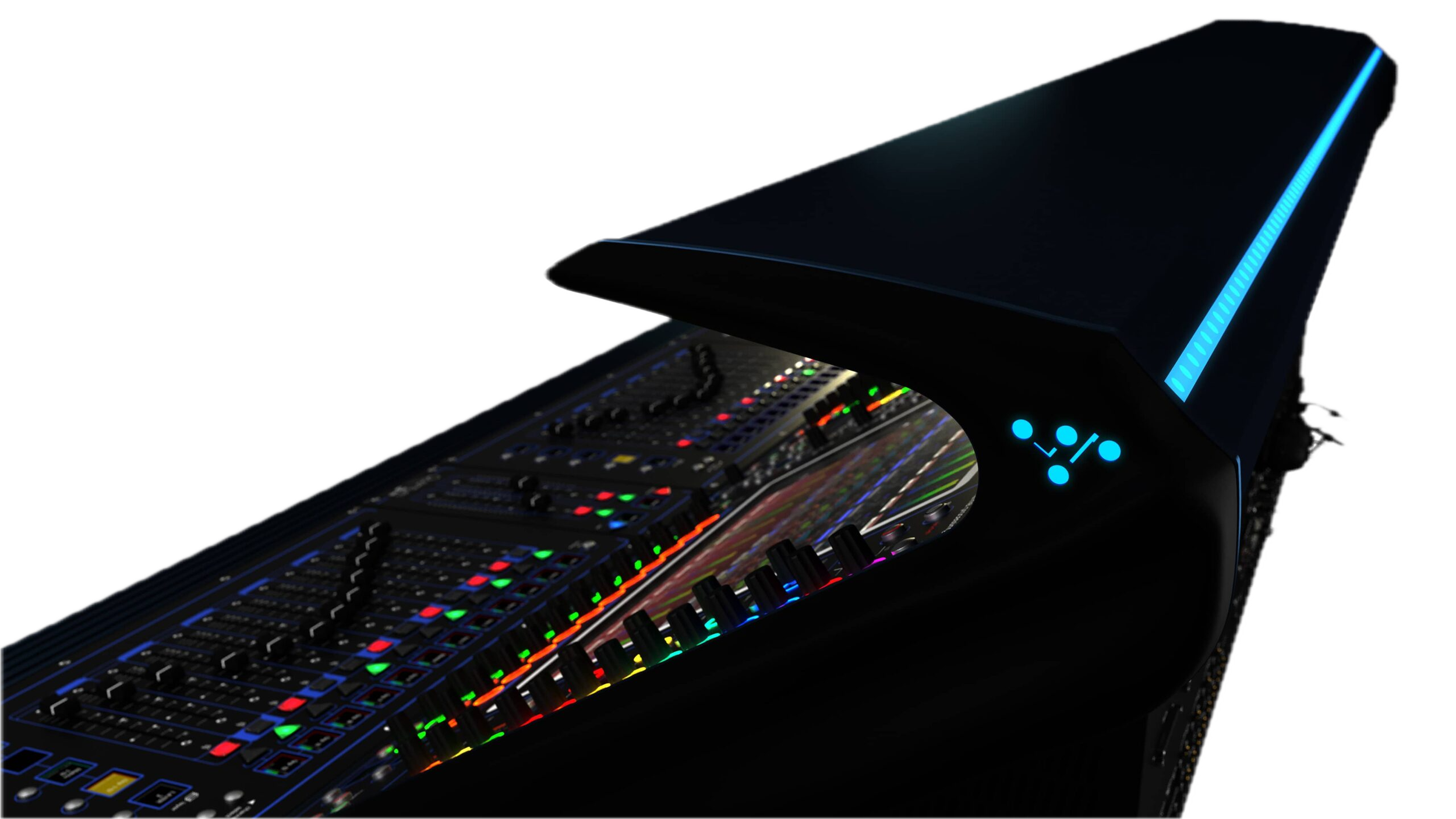

  • A futuristic digital audio mixing console with multicolored lighting and a sleek curved black structure.

  • The DiGiCo Quantum 338 Pulse is a 156 channel mixing console with 38 physical faders and 3 x 17” LCD high-resolution touchscreens. Building on the Quantum 7, the Quantum 338 offers all of the Quantum features plus new design features and enhancements in a smaller format console.

    • 156 Input channels with full processing

    • 72 Aux/Sub-Group busses with full processing

    • 24×24 Matrix with full processing

    • 48 insertable Mustard processing strips

    • 72 Nodal processing instances

    • True Solo function

    • 70 TFT LCD displays

    • Ultimate Stadius 32-bit local I/O

    • Assignable channel layout

    • User programmable macros

    • Capable of redundantly mirroring with another Q338 onsole

    • Redundant PSUs as standard

    • Snapshots for seamlessly changing many parameters at once

    • 2 DMI Slots to expand the I/O as desired

    • Integrated UB MADI

    • Offline software

    • iPad control

    • Theatre software option

    • Mix Minus

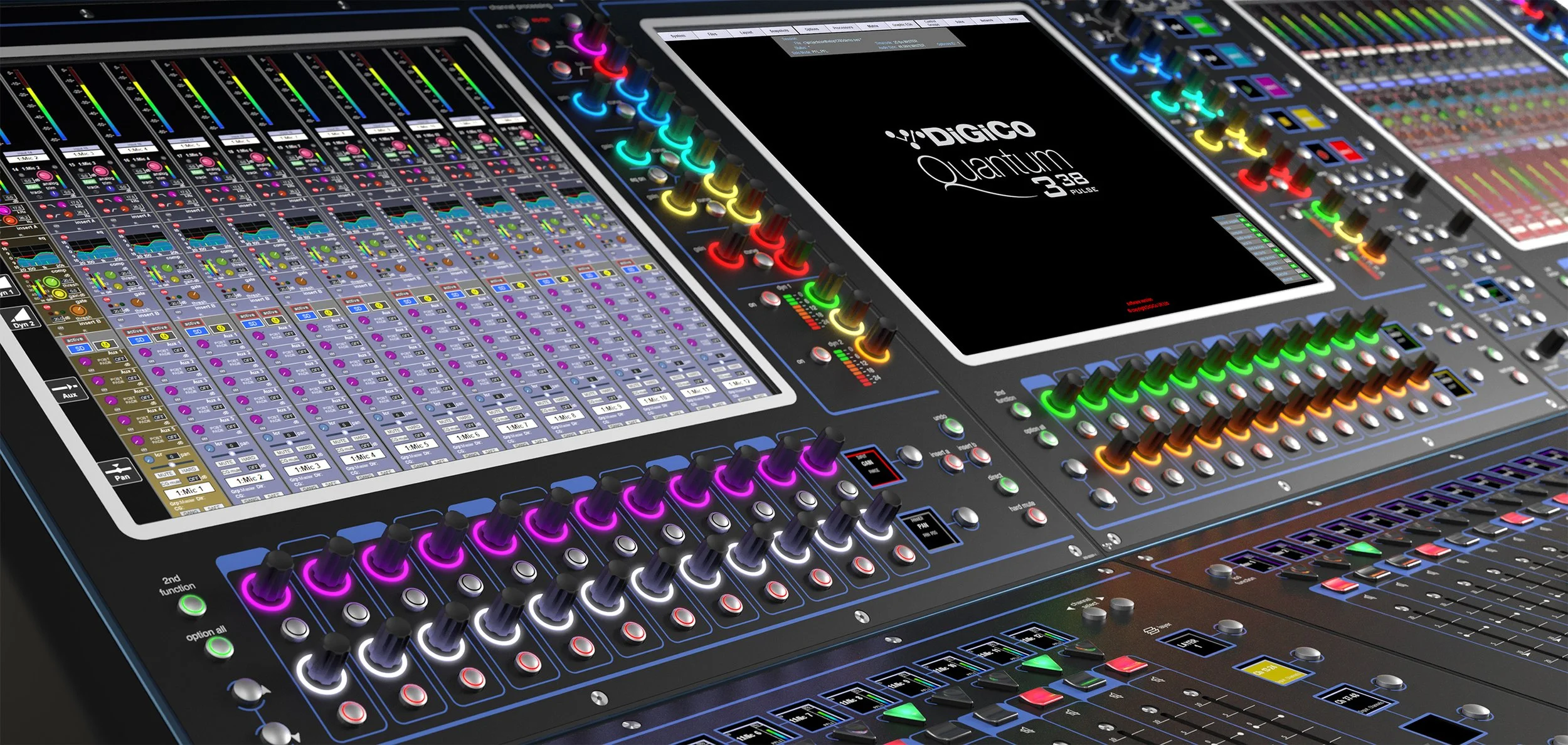

  • WORKSURFACE

    • 38 x 100mm touch-sensitive, motorised faders

    • 3 x 17” LCD high-brightness, high-resolution touchscreens

    • 70 x Full Colour TFT LCD Displays

    • 2 x ¼” Headphone sockets

    • 2 x 3.5mm Headphone sockets

    • 1 x USB 2.0 slot

    • 1 x USB 2.0 5V power only slot (for charging)

    • Keyboard Light Bar

    • Quantum Hood

    • Integrated Light Bar

    • Floating Quantum Chassis

    REAR

    • 2 x Redundant PSUs

    • 8 x XLR Mic/Line Inputs (32-Bit Stadius ADCs)

    • 8 x XLR Line Outputs (32-Bit Stadius DACs)

    • 4 x XLR AES/EBU Inputs (8 x channels)

    • 4 x XLR AES/EBU Outputs (8 x channels)

    • 6 x MADI BNC I/O @ 48k, 3 interfaces at 96k

    • 2 x MultiMode Optocore Interface (Optional)

    • 1 x Waves port (Optional)

    • 2 x DMI Slots (up to 64 I/O per slot)

    • 1 x UB MADI (USB Type B Audio I/O interface for recording and playback of up to 48 channels)

    • 4 x Ethernet ports (switched together)

    • 3 x USB 2.0 slots

    • 1 x GPI DSub37 (16 inputs)

    • 1 x GPO DSub37 (16 outputs)

    • 1 x MIDI In/Thru/Out (5 pin DIN)

    • 1 x Word Clock I/O BNC

    • 1 x DisplayPort Output

    • 1 x AES/EBU Sync I/O

    • 1 x RS422 port (9 pin)

    • 1 x Quantum Lighting Bar

    Options

    • Single or Dual Loop Optocore (HMA, OpticalCon or ST)

    • Upgrade to SingleMode Optocore

    • Waves Soundgrid Interface

    • Theatre Software

    • Flightcase

    • Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC /Dante / Dante 64@96 / Hydra 2 / KLANG / MADI B / MADI C/ ME / Mic / Waves

    Signal Processing

    • 156 Input Channels (Mono)

      • Main & Alternative input

      • Analogue Gain

      • Phase Inversion Control

      • Gain Tracking

      • Digital Trim (-40dB to +40dB)

      • Variable Delay (0ms to 1.3s)

      • DiGiTube

      • HPF/LPF (-24dB/Oct)

      • 4 Band Parametric EQ / Dynamic EQ

      • DYN 1: Compressor, Multiband Compressor, Desser

      • DYN 2: Gate, Duck, External Input Compressor

      • EQ/Dyn Order Control

      • 2 Insert Points per Channel

      • Channel Mute & Hard Mute

      • Channel Direct Outputs

    • 72 Aux/Sub-Group Busses

      • Phase Inversion Control

      • Digital Trim (-20dB to +60dB)

      • Variable Delay (0ms to 1.3s)

      • DiGiTube

      • Merge Input

      • Tone Generator

      • HPF/LPF (-24dB/Oct)

      • 8 Band EQ: 4 Band Parametric EQ and 4 Band

      • Parametric or Dynamic EQ

      • DYN 1: Compressor, Multiband Compressor, Desser

      • DYN 2: Gate, Duck, External Input Compressor

      • EQ/Dyn Order Control

      • 2 Insert Points per Channel

      • Channel Mute & Hard Mute

    • 1 LR/LCR/LCRS/5.1 Master Buss (with full processing)

    • 24 input x 24 output Full Processing Matrix

    • 24 Control Groups (CGs)

    • 2 Solo Busses

    • 24 x 32-band GEQs

    • 24 x Internal Stereo FX Processors

      • Delays

      • Audio Enhancer

      • Choruses

      • Pitch Shifters

      • Reverbs

    • 8 x Internal Spice Rack Slots

      • 6 band Dynamic Multiband Compressor/Expander

      • 6 band Dynamic EQ

    • 48 x Mustard Processing Strips

      • Tube

      • Tube Emulation

      • HPF/LPF (-24dB/Oct)

      • 4 Band EQ: 2 Band Parametric EQ and 2 Band

      • Parametric EQ or All Pass Filters

      • DYN 1: Classic RMS/Peak Compressor, Vintage VCA

      • Compressor, Optical Compressor, FET Limiter

      • DYN 2: Gate, Ducker

    • 72 x Nodal Processing

      • 4 Band Parametric EQ / Dynamic EQ

      • DYN 1: Compressor, Multiband Compressor, Desser

      • DYN 2: Gate, Duck, External Input Compressor

    • Multiband Compressors available on every channel, Buss and Nodal Processor

    • Dynamic EQs available on every channel, Buss and Nodal Processor

    • DiGiTuBes available on every channel & Buss

    • Virtual Soundcheck

    • True Solo function

    Audio Specifications

    • Sample Rate: 48kHz or 96kHz

    • Processing Delay: 1ms Typical (channel, SD Rack input through L-R buss to stage output @ 96kHz)

    • Internal Processing: Up to 40-bit, Floating Point

    • A>D & D>A: 32-bit Converter Bit Depth

    • Frequency Response: +/- 0.15dB (20Hz – 20kHz)

    • THD: <0.002% @ Unity Gain,: 0dB Input @ 1kHz

    • Channel Separation: Better Than 120dB: (40Hz-15kHz)

    • Residual Output Noise: <100 dBu Typical (20Hz - 20kHz)

    • Microphone Input: Better Than -128dB: Equivalent Noise

    • Maximum Output Level: +22dBu

    • Maximum Input Level: +22dBu

    Physical

    • Dimensions: 1595mm (w) x 805mm (d) x 482mm (h)

    • Weight: 70kg (198kg with optional flightcase)

    • Flightcase: 1717mm (w) x 642mm (d) x 1144mm (h) (Optional)

    • Power Requirements: 100-240V, 50-60Hz, 340VA

    • Redundancy: Internal PSUs x 2

    • Product Code: X-Q338-WS

Available options

  • Audio mixing console with numerous channels, input and output ports, dials, and digital displays for audio control and processing.

    SD Rack

    The DiGiCo SD-Rack is a 14 slot input and output rack, allowing up to 56 inputs and 56 outputs. The SD-Rack is compatible with a large selection of analogue and digital modules including DiGiCo’s 32-bit DACs, Dante, AES/EBU and Aviom. Based on the same Stealth FPGA technology as the world-renowned SD-Range of consoles, the result is industry-leading A/D conversion complete with DiGiCo’s famous Gain Tracking™.

  • Audio mixer with multiple input channels, power switch, and various controls for managing audio signals

    SD Rack Mini

    The DiGiCo SD-Rack is a 4 slot input and output rack, allowing up to 32 inputs and 32 outputs. The SD-MINI Rack is compatible with a large selection of analogue and digital modules including DiGiCo’s 32-bit DACs, Dante, AES/EBU and Aviom. Based on the same Stealth FPGA technology as the world-renowned SD-Range of consoles, the result is industry-leading A/D conversion complete with DiGiCo’s famous Gain Tracking™.

  • A rear view of a Dante audio networking card with Ethernet, control, primary, and secondary connection ports.

    DMI Dante 64@96

    This card provides 64 inputs and 64 outputs to the Dante network at both 48kHz and 96kHz.

  • A professional audio equipment rack with multiple input/output ports, switches, and status indicators, labeled with brand DigiCo and featuring DMI modules.

    Orange Box

    Orange Box With DiGiCo’s compact 2U Orange Box, you can use DiGiCo Multichannel Interface (DMI) cards to create audio paths over whatever interface you desire. The Orange Box has 2 PSUs for redundancy, and 2 slots to accommodate any of our DMI cards that allow you to convert pretty much any format to another.

  • Front view of a Superrack Livebox D server with a digital display, illuminated logo, and power button.

    Waves

    If you want even more processing and effects in addition to the Stealth FX standard on all DiGiCo consoles, the option of running Waves Plugins live on your console opens up a whole world of choice.

    Waves’ SoundGrid technology enables you to run Waves plugins in real time and with super-low latency on your DiGiCo console, allowing maximum plugin control, reliably fast processing speeds and the ultimate live sound performance for FOH, Monitor, Broadcast and Theatre engineers.

  • Black audio device with a yellow speaker grille, a small display screen showing IP addresses, two USB ports, and a yellow logo on the right.

    Fourier transform

    The transform.engine and transform.go are low-latency, reliable plugin hosts, with the ability to host any Windows 10 compatible VST3 plugins that can be installed and licensed offline.
