Digico SD12 96

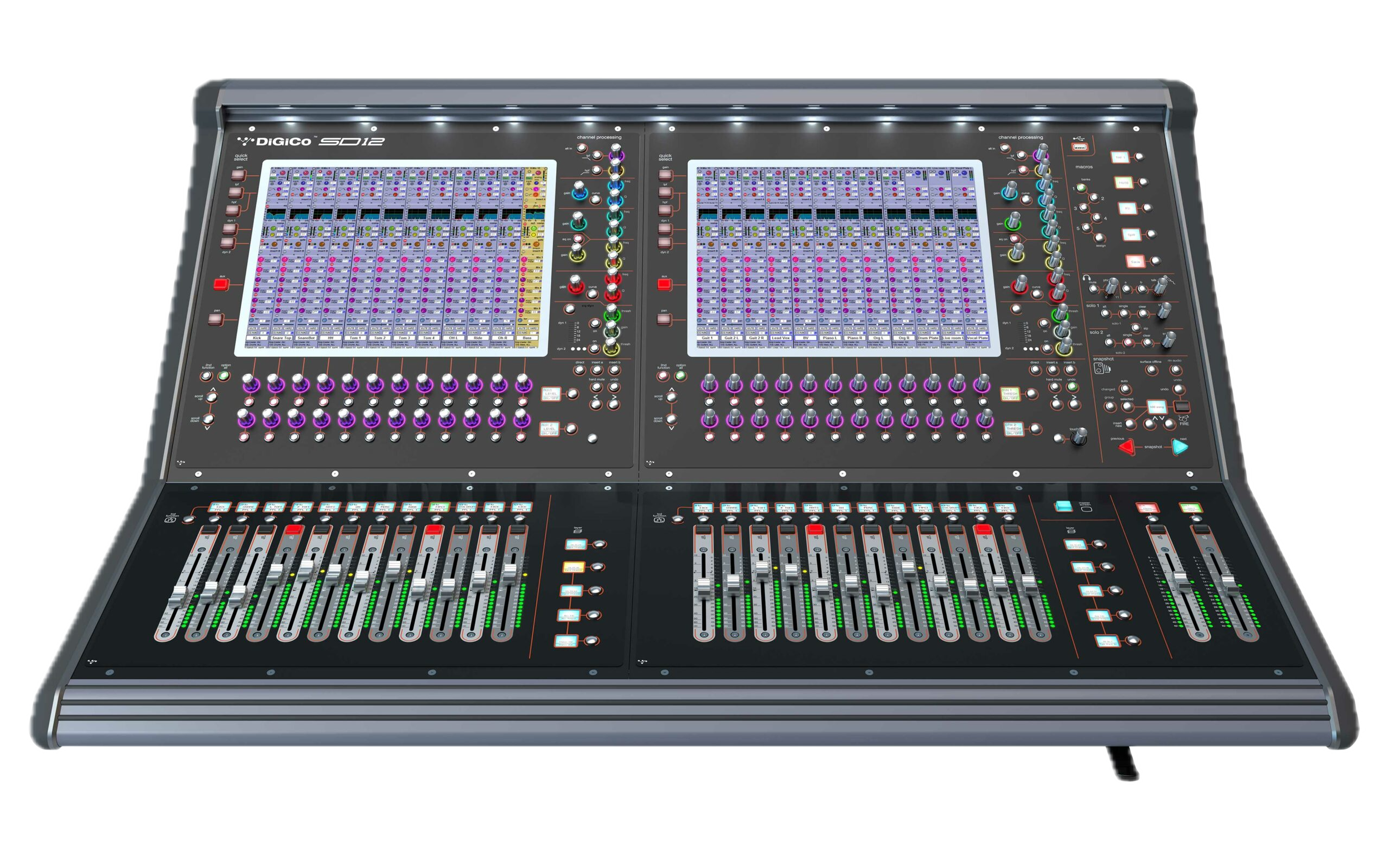

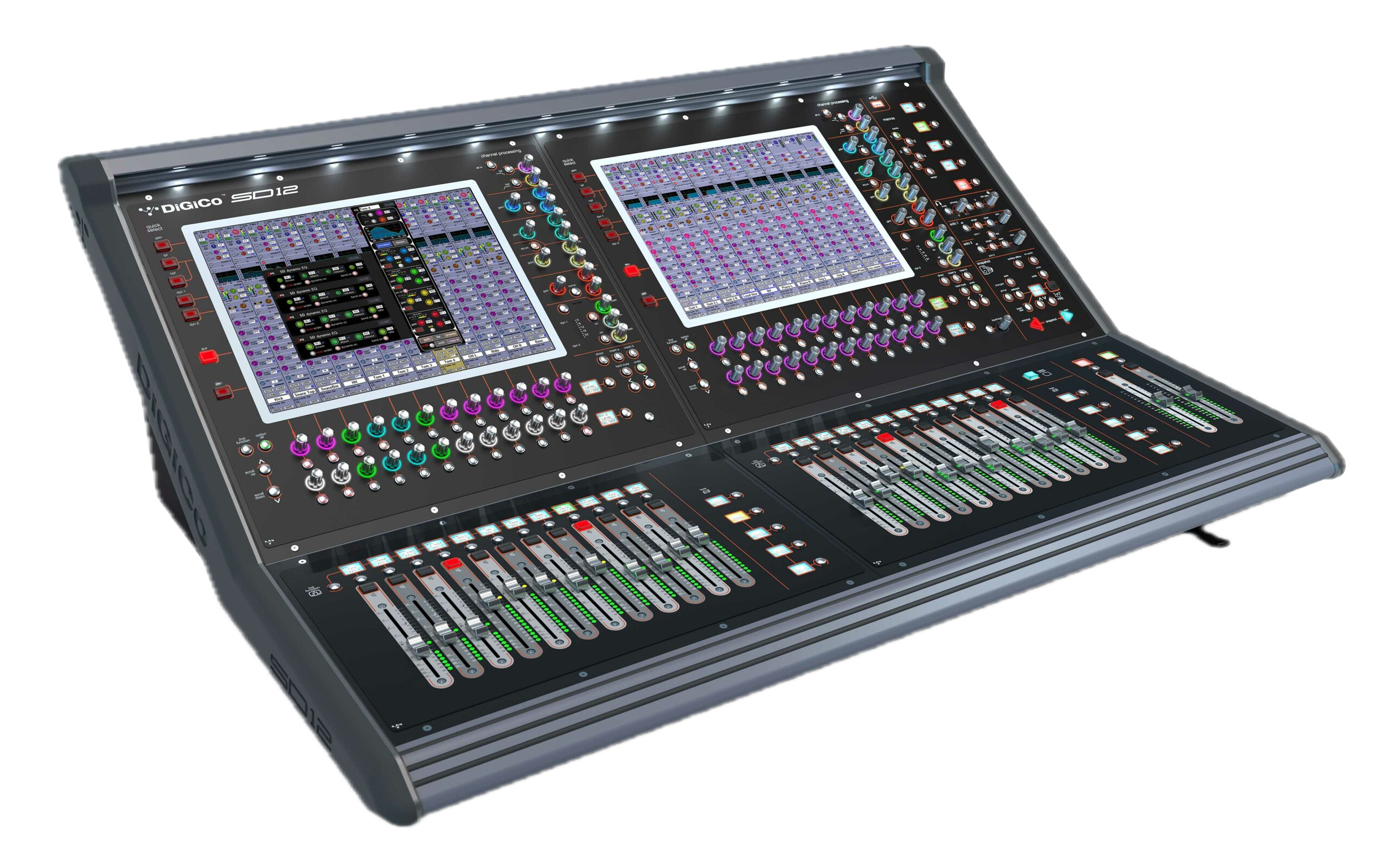

The DiGiCo SD12 is a 96 channel mixing console with 26 physical faders and 2 x 15” LCD high-resolution touchscreens. With Stealth Digital Processing and FPGA technology, the SD12 raises the bar as a multi-application digital console at an exceptionally affordable price point.

• 96 channels with full processing

• 48 Aux/Sub-Group busses with full processing

• 12×8 Matrix with full processing

• Assignable channel layout

• User programmable macros

• Capable of redundantly mirroring with another SD12 console

• Redundant PSUs as standard

• Snapshots for seamlessly changing many parameters at once

• 2 DMI Slots to expand the I/O as desired

• Integrated UB MADI

• Offline software

• iPad control

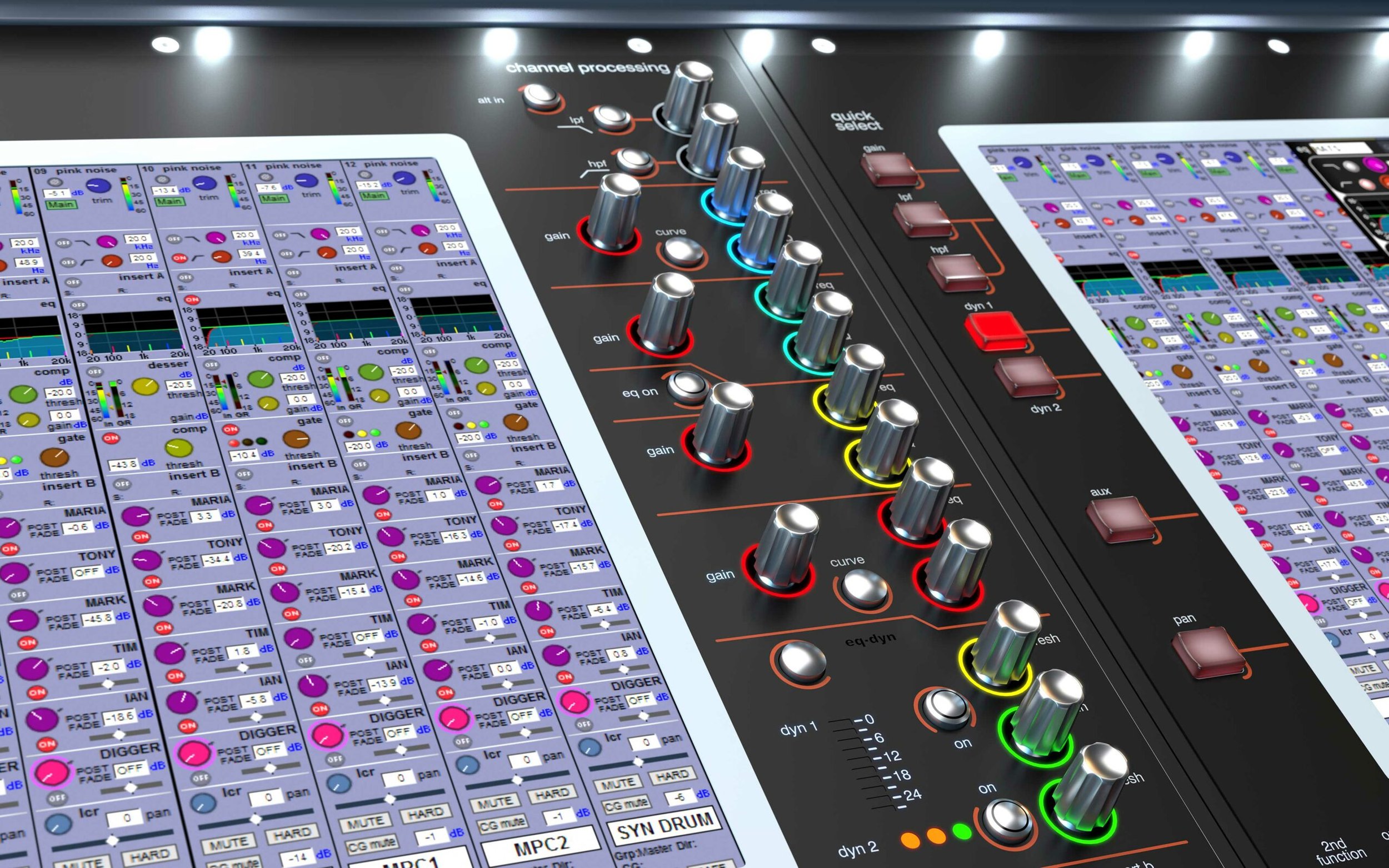

WORKSURFACE

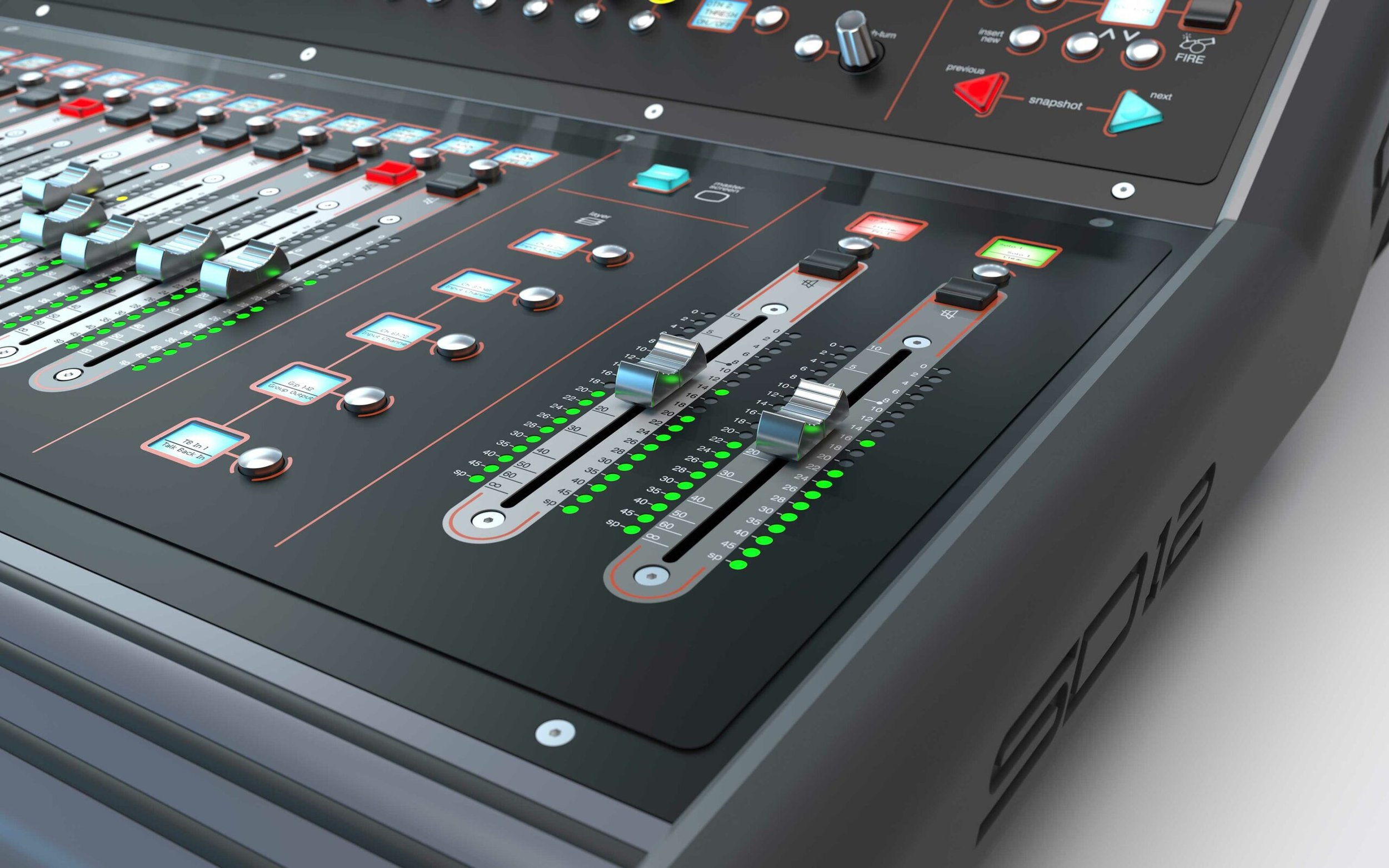

• 26 x 100mm touch-sensitive, motorised faders

• 2 x 15” LCD high-resolution touchscreens

• 28 x 20-Segment LED bargraph meters

• 1 x ¼” Headphone socket

• 1 x 3.5mm Headphone Socket

• 1 x USB 2.0 slot

• Integrated Light Bar

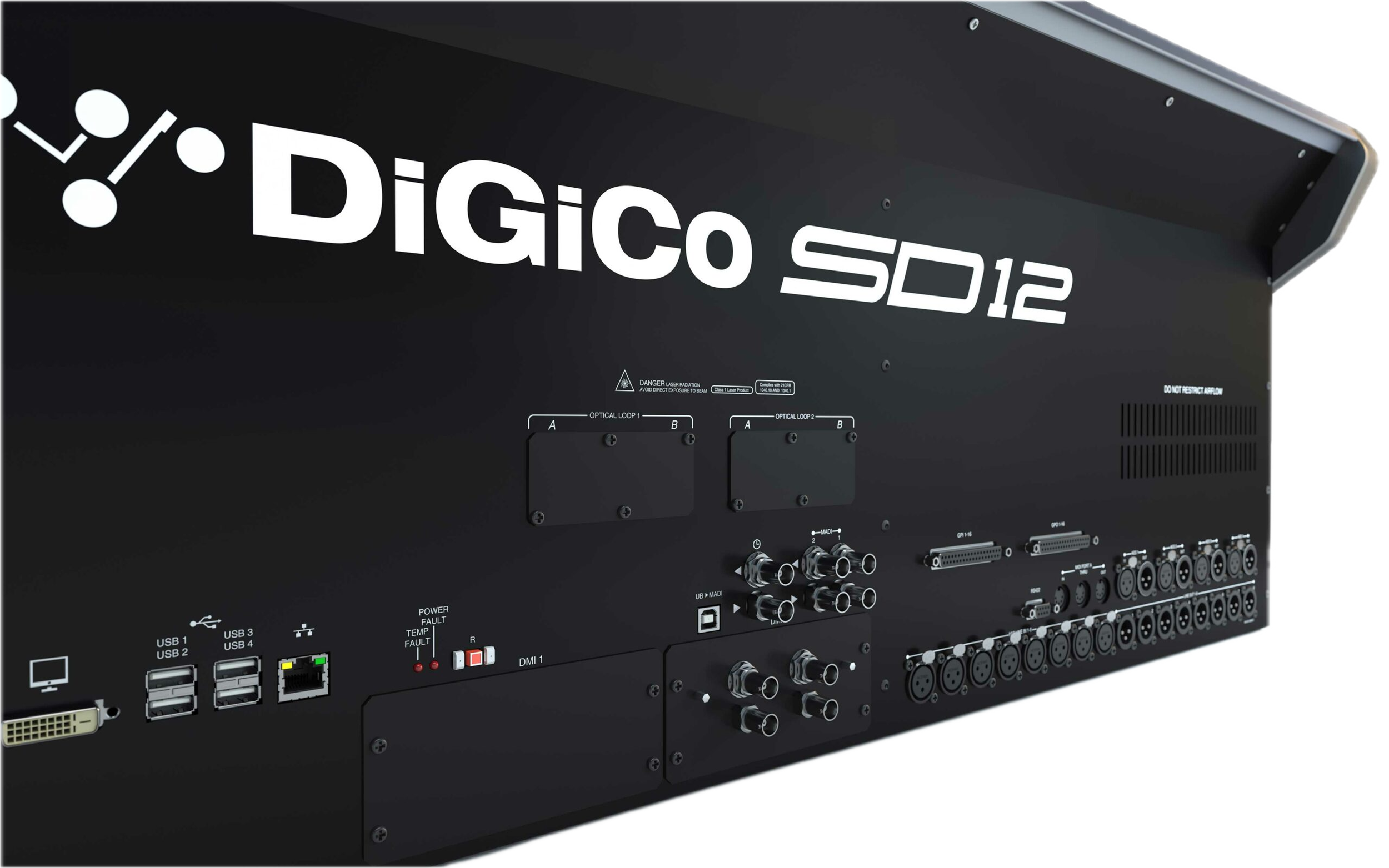

REAR

• 2 x Redundant PSUs

• 2 x DMI Slots (up to 64 I/O per slot)

• 8 x XLR Mic/Line Inputs

• 8 x XLR Line Outputs

• 4 x XLR AES/EBU Inputs (8 x channels)

• 4 x XLR AES/EBU Outputs (8 x channels)

• 1 x GPI DSub37 (16 inputs)

• 1 x GPO DSub37 (16 outputs)

• 1 x MIDI In/Thru/Out (5 pin DIN)

• 1 x Word Clock I/O BNC

• 2 x MADI BNC I/O

• 1 x DVI port

• 1 x Ethernet port

• 4 x USB 2.0 slots

• 2 x Optocore Interface (Optional)

• 1 x UB MADI (USB Type B Audio I/O interface for recording

• and playback of up to 48 channels)

• 1 x RS422 port (9 pin)

Options

• Single or Dual Loop Optocore (HMA, OpticalCon or ST)

• Upgrade to SingleMode Optocore

• SD12 96 Software Upgrade

• Theatre Software

• Flightcase

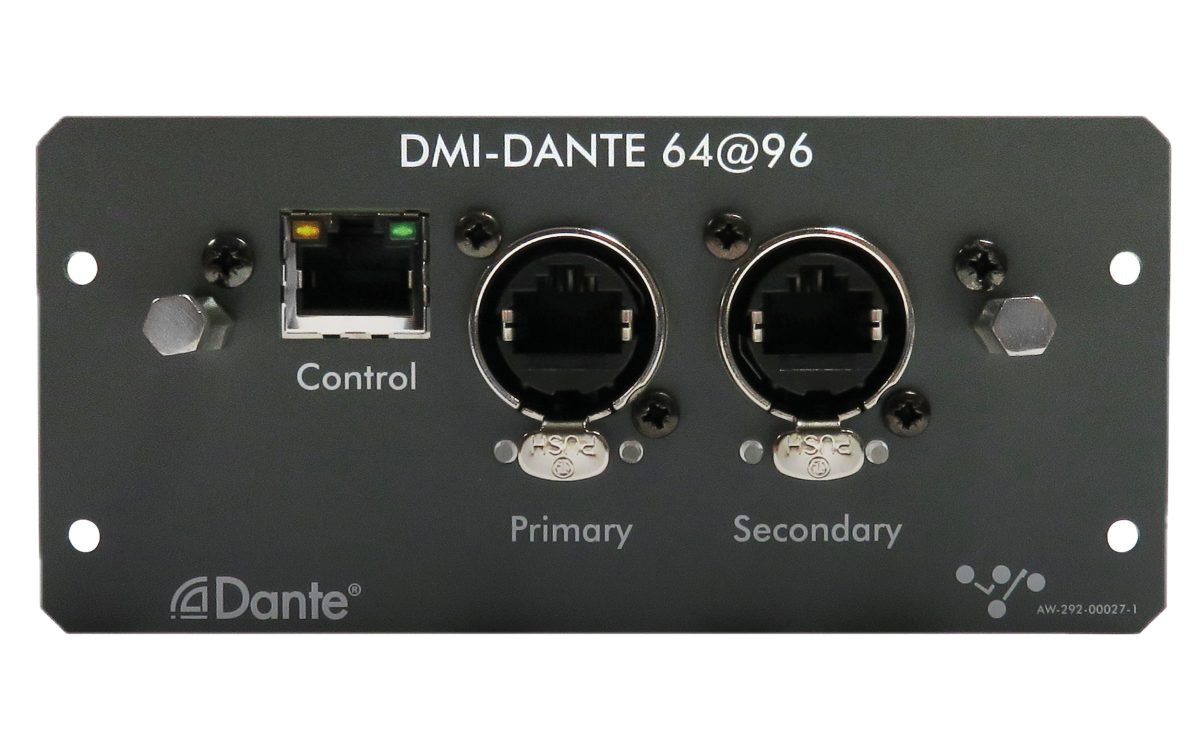

• Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC / Dante / Dante64@96 / Hydra 2 / KLANG / MADI B / MADI C / ME / Mic / Waves

Signal Processing

• 72 Input Channels (Mono)

  • Main & Alternative input

  • Analogue Gain

  • Phase Inversion Control

  • Gain Tracking

  • Digital Trim (-40dB to +40dB)

  • Variable Delay (0ms to 1.3s)

  • DiGiTube

  • HPF/LPF (-24dB/Oct)

  • 4 Band Parametric EQ / Dynamic EQ

  • DYN 1: Compressor, Multiband Compressor, Desser

  • DYN 2: Gate, Duck, External Input Compressor

  • EQ/Dyn Order Control

  • 2 Insert Points per Channel

  • Channel Mute & Hard Mute

  • Channel Direct Outputs

• 36 Aux/Sub-Group Busses

  • Phase Inversion Control

  • Digital Trim (-40dB to +40dB)

  • Variable Delay (0ms to 1.3s)

  • DiGiTube

  • Merge Input

  • Tone Generator

  • HPF/LPF (-24dB/Oct)

  • 4 Band Parametric EQ / Dynamic EQ

  • DYN 1: Compressor, Multiband Compressor, Desser

  • DYN 2: Gate, Duck, External Input Compressor

  • EQ/Dyn Order Control

  • 2 Insert Points per Channel

  • Channel Mute & Hard Mute

• 1 LR/LCR Master Buss (with full processing)

• 12 input x 8 output Full Processing Matrix

• 12 Control Groups (CGs)

• 2 Solo Busses

• 16 x 32-band GEQs

• 12 x Internal Stereo FX Processors

  • Delays

  • Audio Enhancer

  • Choruses

  • Pitch Shifters

  • Reverbs

• DiGiTuBes available on every channel and Buss

• Dynamic EQs available on every channel and Buss

• Multiband Compressors available on every channel & Buss

• Virtual Soundcheck

Audio Specifications

• Sample Rate: 48kHz or 96kHz

• Processing Delay: 1ms Typical (channel, SD Rack Input

• Through L-R Buss to Stage Output @96kHz)

• Internal Processing: Up to 40-bit, Floating Point

• A>D & D>A: 24-bit Converter Bit Depth

• Frequency Response: +/- 0.6dB (20Hz – 20kHz)

• THD: <0.05% @ Unity Gain,: 10dB Input @ 1kHz

• Channel Separation: Better Than 90dB: (40Hz-15kHz)

• Microphone Input: Better Than -126dB: Equivalent Noise

• Maximum Output Level: +22dBu

• Maximum Input Level: +22dBu

Physical

• Dimensions: 1124mm (w) x 795mm (d) x 389mm (h)

• Weight: 42kg (130kg with optional flightcase)

• Flightcase: 1270mm (w) x 570mm (d) x 1150mm (h) (Optional)

• Power Requirements: 90-260V, 50-60Hz, 232VA (140W)

• Redundancy: Internal PSU x 2

• Product code: X-SD12
