YAMAHA DM7C

Request a Quote

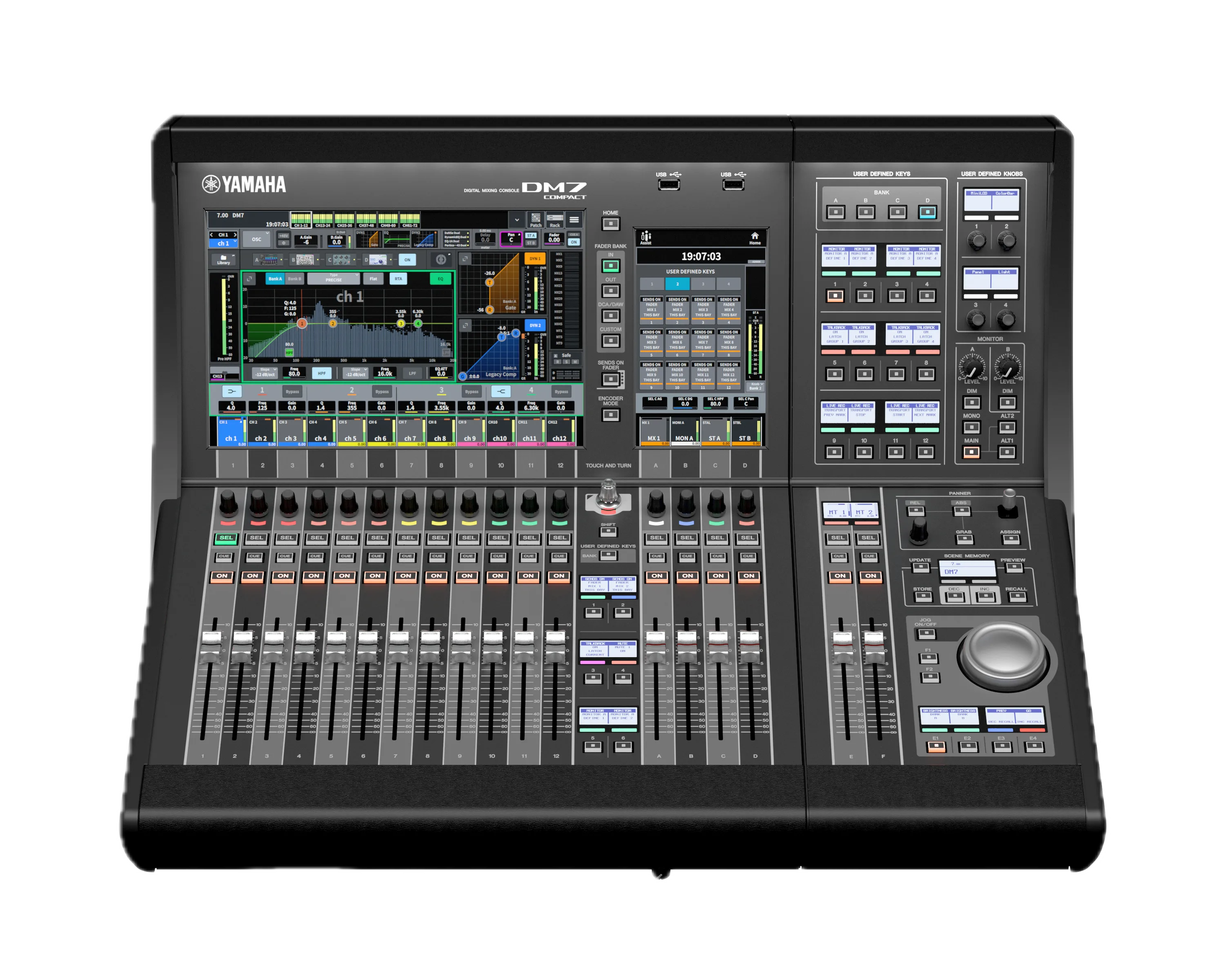

  • Digital audio mixing console with colorful controls and two screens, branded Yamaha DM7, on a black background.

  • Rear view of a Yamaha DM7 Compact digital mixing console showing various input and output ports, power supply, and ventilation fans.

  • Digital Yamaha sound mixing console with multiple faders, knobs, and screens.

  • The DM7C is a 72-channel, single-bay digital mixer with an intuitive interface that adapts to your individual workflow.

    Navigating the DM7C is a piece of cake, thanks to its 12-inch and 7-inch touchscreens, 16 motorized faders, and all-purpose touch-and-turn knob. You get pristine 96kHz audio, deftly reinforced by 16 outstanding mic preamps and 16 analog outputs.

    Yamaha has long been renowned for digital effects, going way back to its '80s-era REV and SPX processors, and the DM7C reflects this storied heritage. You get an 18 x 18 audio interface that works with Yamaha's VST Rack along with a 144 x 144 Dante interface.

    The DM7C is also outfitted with a DAW remote function, an internal dual power supply, an ultra-efficient split mode, and cutting-edge AI assist functions.

    • Renowned Yamaha Sound with 96kHz sample rate

    • Screens: 1 x High-Res Multi-touch 12” + 1 x High-Res 7”

    • Faders: 12 + 4 + 2

    • Mixable Channels: 72 inputs

    • Mixes: 48 Mono + 12 Matrixes + 2 ST Bus + 2 Cue

    • Analog i/o: 16 x 16

    • Digital: 1 x AES Out

    • PY Slot i/o: 64x64 @96k

    • Dante: 144 x 144@96k

    • USB-C: 18x18 Audio Interface – Works with VST RACK

    • Time Code In

    • Internal Dual Power Supply

    • DAW Remote Function

    • Split mode

    • First-of-its-kind AI Assist Functions

  • WORKSURFACE

    • Faders

      • 12 + 4 motorized faders (main DM7 surface)

      • DM7C-EX adds additional physical controls (via Control expansion): extra faders, encoders, jog wheel, monitor controls

    • Displays

      1 × 12.1" multi-touch screens

      • 1 × 7" multi-touch screen

    • Encoders / Controls

      • Touch & Turn rotary encoders

      • Channel/screen encoders

      • User-defined knobs (4 encoders under utility screen)

    • User Defined Keys

      • Surface: 6 keys (6 × 4 banks)

      • On-screen: 12 keys (12 × 4 banks)

    • Channel Control

      • Selected Channel view + overview workflow

      • Custom fader banks

      • DCA rollout (24 DCA groups)

    • Other Surface Features

      • Arm rest

      • Shift keys

      • No dedicated channel name displays (on-screen only)

    REAR

    • Analog I/O

      • 16 × analog inputs

      • 16 × analog outputs

    • Digital Audio

      • Dante: 144 in / 144 out (Primary / Secondary redundant)

      • AES/EBU:

        • 1 outputs (2 ch, SRC)

    • USB

      • USB to Host (Type-C, 18×18 audio interface)

      • USB to Device ×2 (record/playback, file ops)

    • Network / Control

      • Ethernet (control + OSC server)

      • GPI: 5 in / 5 out

      • Clock / Sync

        • Word Clock In/Out

        • Timecode In

      • Expansion

        • 1 × PY expansion slot

      • Other

        • Timecode In

        • Headphone output

        • Dual AC inputs (redundant power supply built-in)

    Options

    • Control Expansion (EX system)

      • Adds:

        • Extra faders

        • User-defined control section

        • Jog wheel (DAW control)

        • Scene memory controls

        • Panner joystick

        • Monitor control section

    • Software Packages (included with EX)

      • Broadcast Package:

        • 5.1 surround

        • Mix Minus

        • Audio Follow Video

        • Loudness meter

      • Theatre Package:

        • Actor Library

        • DCA Scene Grid

        • AFC Image control

    • Apps / Software

      • DM7 Editor (Win/Mac)

      • StageMix

      • MonitorMix

      • ProVisionaire Control / Touch

      • Nuendo Live integration

    Signal Processing

    • Mixing Architecture

      • 120 mono input channels

      • 48 mix buses

      • 12 matrix buses

      • 2 stereo + 1 mono bus

      • 2 cue buses

    • Channel Processing

      • EQ

        • Input: 4-band full parametric EQ

        • Output: 8-band full parametric EQ

      • Filters

        • HPF: 20 Hz – 2 kHz

        • LPF: 20 Hz – 20 kHz

      • Dynamics

        • Comp, Expander, Gate, Ducking, De-esser

        • FET limiter, Diode bridge compressor

      • Delay

        • Input & output delay: up to 1000 ms

      • Automixing

        • Dan Dugan automixer (up to 64 channels)

      • Inserts

        • 1 insert point per channel

        • 4 plugin slots per insert

    • Rack Processing

      • Premium Rack

        • 64 DSP resources

        • Plugins include:

          • Portico 5033 / 5043

          • U76, Opt-2A, Comp276

          • Dynamic EQ, REV-X, DaNSe, etc.

      • Effect Rack

        • 16 DSP units

        • 43 effect types

      • EQ Rack

        • 32 DSP

        • 31-band GEQ / Flex15GEQ / 8-band PEQ

    • Additional Processing Features

      • Gain compensation

      • RTA overlay

      • Delay compensation

      • Virtual soundcheck

      • OSC control server

      • Wireless mic monitoring

    Audio Specifications

    • Sample Rate

      • Up to 96 kHz

    • Bit Depth

      • 24-bit / 32-bit (internal processing typical for Yamaha DSP)

    • Dante Audio

      • 144 × 144 channels @ up to 96 kHz

    • USB Audio Interface

      • 18 in / 18 out

    • Head Amp / Gain

      • Digital gain: –96 dB to +24 dB

    • Latency

      • Low-latency DSP + Dante (dependent on network settings)

    Physical

    • Dimensions (DM7 base console)

    • Width: 793 mm (31.3")

      • Height: 324 mm (12.8")

      • Depth: 564 mm (22.2")

    • Weight

      • 23.5 kg (51.8 lb)

    • Power

      • Dual redundant PSU (V-lock AC inputs)

      • Power consumption: ~240 W

    • Build / Design

      • Integrated LED strip lighting

      • No external lamp connector

      • Desktop form factor (non rack-mount)

Available options

  • A Yamaha Rio3224-D2 audio audio mixer with multiple input and output channels, control knobs, and connection ports.

    RIO3224-D2

    Features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

  • Yamaha Rio1608-D2 audio mixer with multiple XLR input and output ports, LEDs, and control knobs.

    RIO1608-D2

    Features 16 analog inputs and 8 analog outputs, and is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. The Rio1608-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

  • Close-up of a Yamaha PY64-MD audio equipment panel with input and output ports, labeled for connections.

    PY64-MD MADI

    The Yamaha PY64-MD digital interface card adds 64 bidirectional channels of MADI connectivity to your DM7 or DM7C digital mixer. You also get a dedicated word clock port for sample rate conversion.

  • Close-up of Waves WSG-PY64 SoundGrid audio interface with black metal faceplate, Ethernet port, status indicator, and control knobs

    WSG-PY64 I/O Card

    With a setup consisting of a WSG-PY64-equipped DM7 console, a Waves SoundGrid DSP server, and a Mac or PC, you can now process 64 audio channels using Waves’ vast catalog of industry-leading EQs, compressors, effects, analog emulations, unique problem solvers, and more

  • A professional audio plug-in host with a sleek silver and black design, displaying the brand logo, model name 'Superrack Livebox D', and power button.

    Waves

    Waves’ SoundGrid technology enables you to run Waves plugins in real time and with super-low latency on your Yamaha console, allowing maximum plugin control, reliably fast processing speeds and the ultimate live sound performance for FOH, Monitor, Broadcast and Theatre engineers.

  • Front view of a black audio equipment with a yellow grille, USB ports, a display, and control buttons.

    Fourier transform

    The transform.engine and transform.go are low-latency, reliable plugin hosts, with the ability to host any Windows 10 compatible VST3 plugins that can be installed and licensed offline.
