YAMAHA DM7-EX

Request a Quote

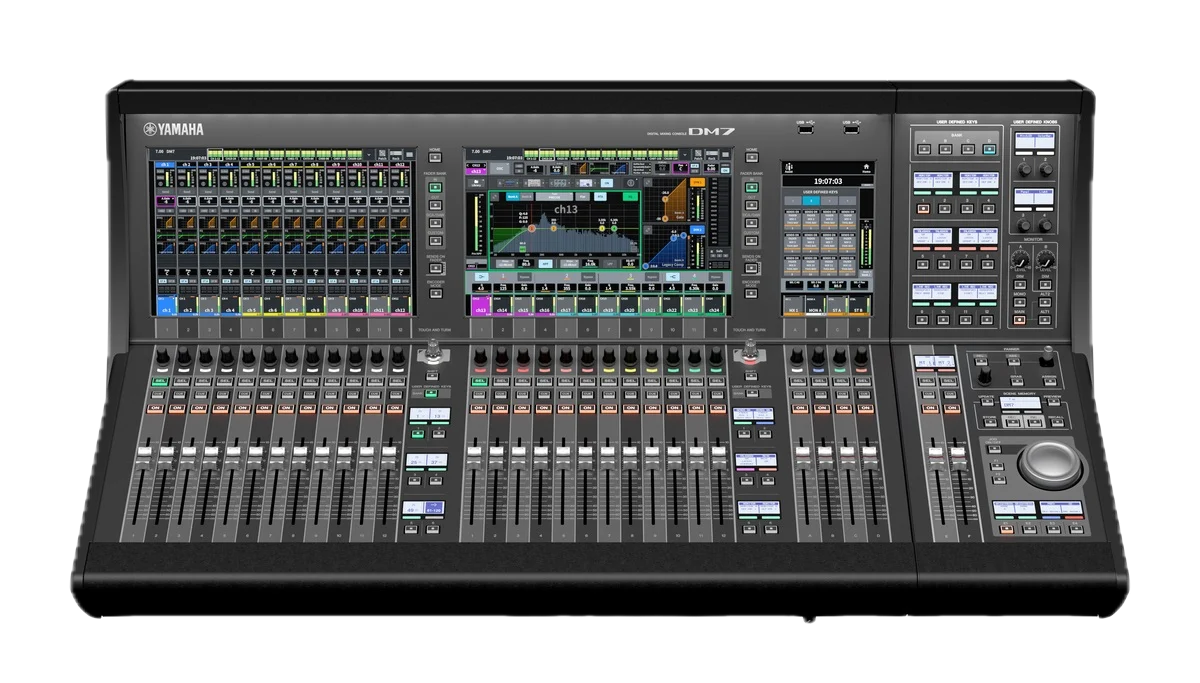

  • Digital audio mixing console, Yamaha DM7 model, with various faders, knobs, buttons, and a central touchscreen display.

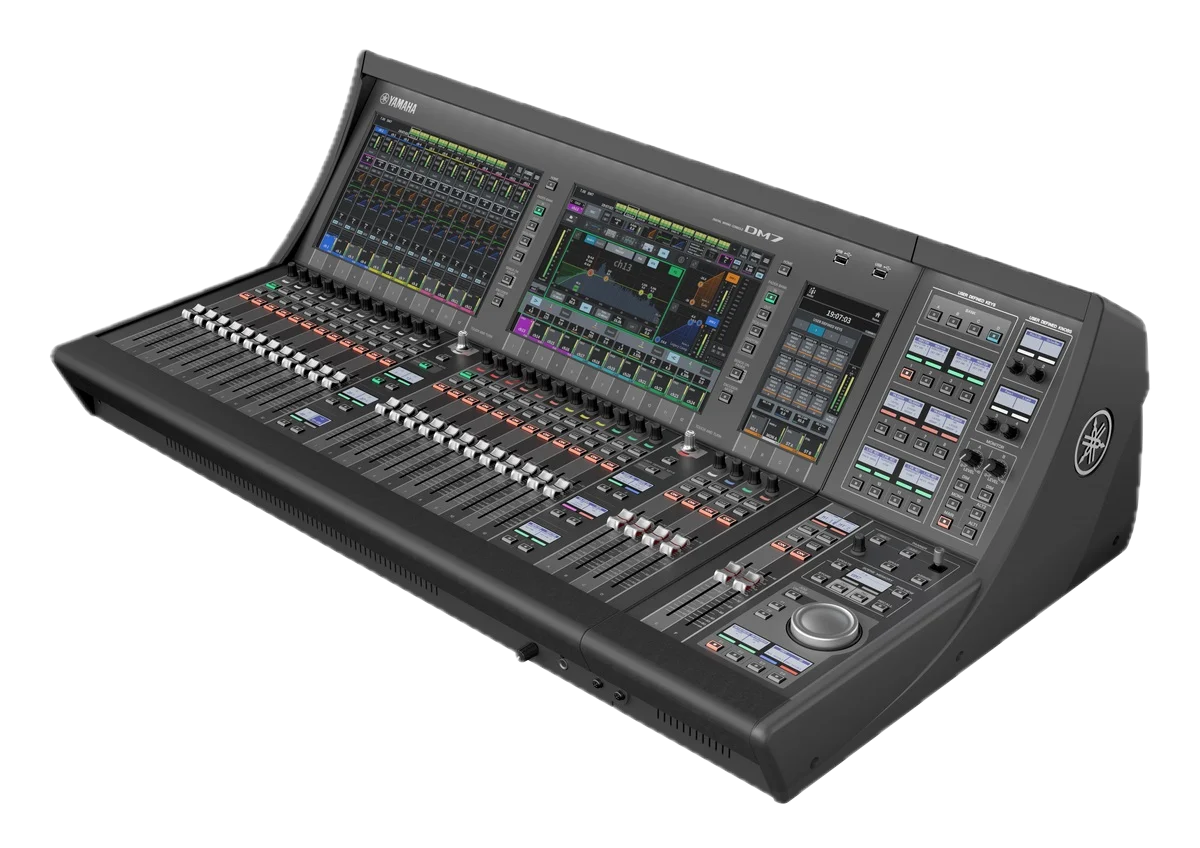

  • A professional digital audio mixing console with multiple faders, buttons, knobs, and digital screens.

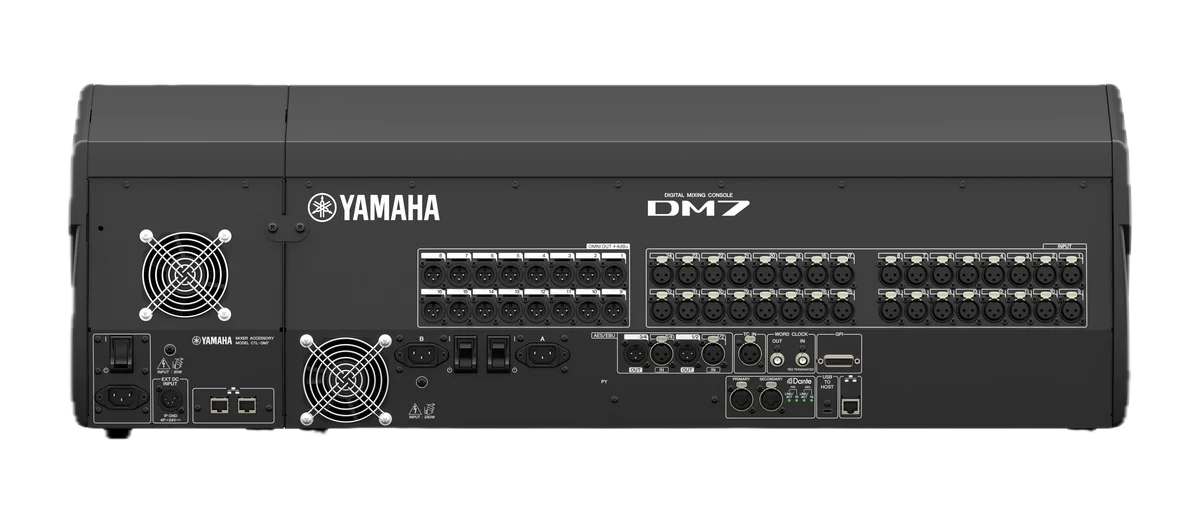

  • Yamaha DM7 digital mixing console showing various input and output ports on the back panel.

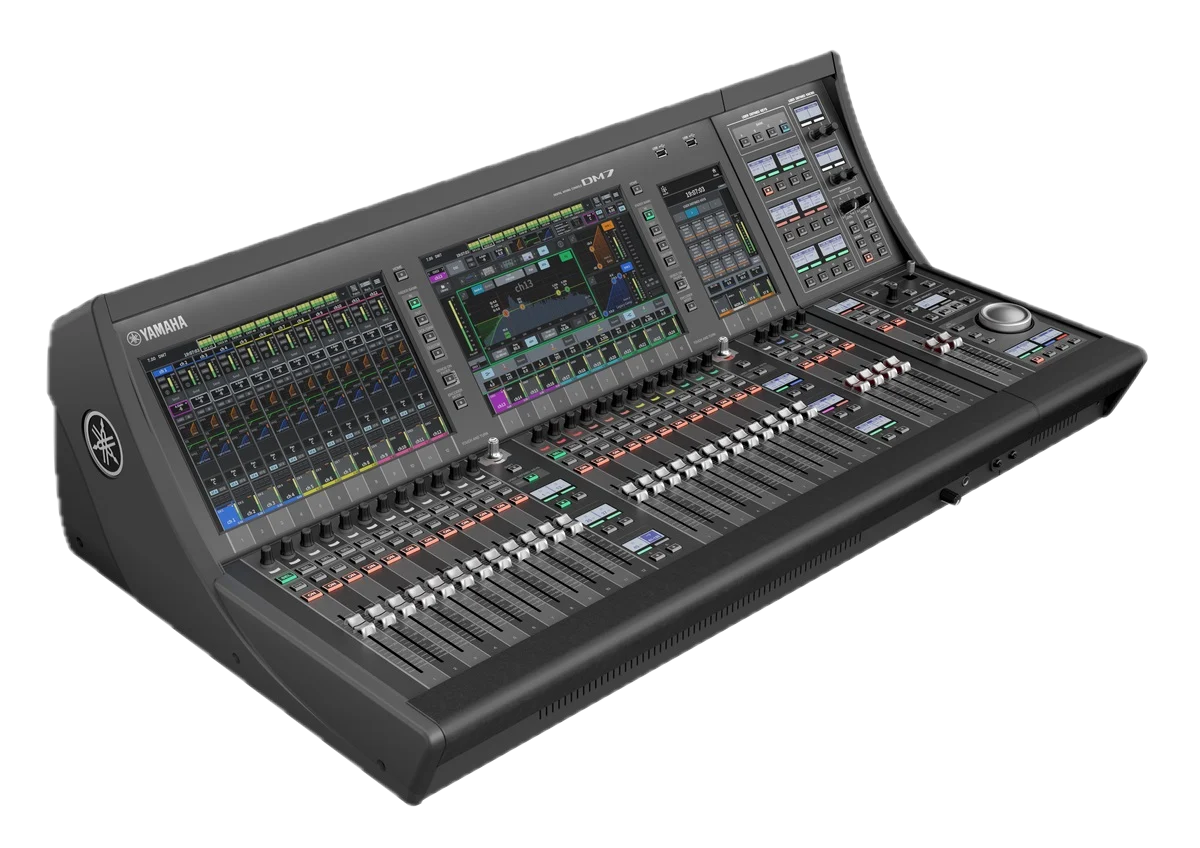

  • A Yamaha digital sound mixing console with multiple sliders, knobs, and two large touchscreens.

  • The Yamaha DM7-EX combines the power of the DM7 120-channel Dante-enabled digital mixing console with the CTL-DM7 expansion controller, delivering exceptional versatility and efficiency for live sound, theater, broadcast, and corporate A/V applications. The DM7 features a dual-bay design with an intuitive user interface, including two 12-inch touchscreens, a 7-inch touchscreen, 28 motorized faders, and touch-and-turn knobs for streamlined navigation. It delivers pristine 96kHz audio quality, supported by 32 premium mic preamps and 16 analog outputs, alongside an 18 x 18 USB audio interface and 144 x 144 Dante connectivity for easy integration with your workflow.

    • Renowned Yamaha Sound with 96kHz sample rate

    • Screens: 2 x High-Res Multi-touch 12” + 1 x High-Res 7”

    • Faders: 12+ 12 + 4 + 2

    • Mixable Channels: 120 inputs

    • Mixes: 48 Mono + 12 Matrixes + 2 ST Bus + 2 Cue

    • Analog i/o: 32 x 16

    • Digital: 2 x AES In/Out

    • PY Slot i/o: 64x64 @96k

    • Dante: 144 x 144@96k

    • USB-C: 18x18 Audio Interface – Works with VST RACK

    • Time Code In

    • Internal Dual Power Supply

    • DAW Remote Function

    • Split mode

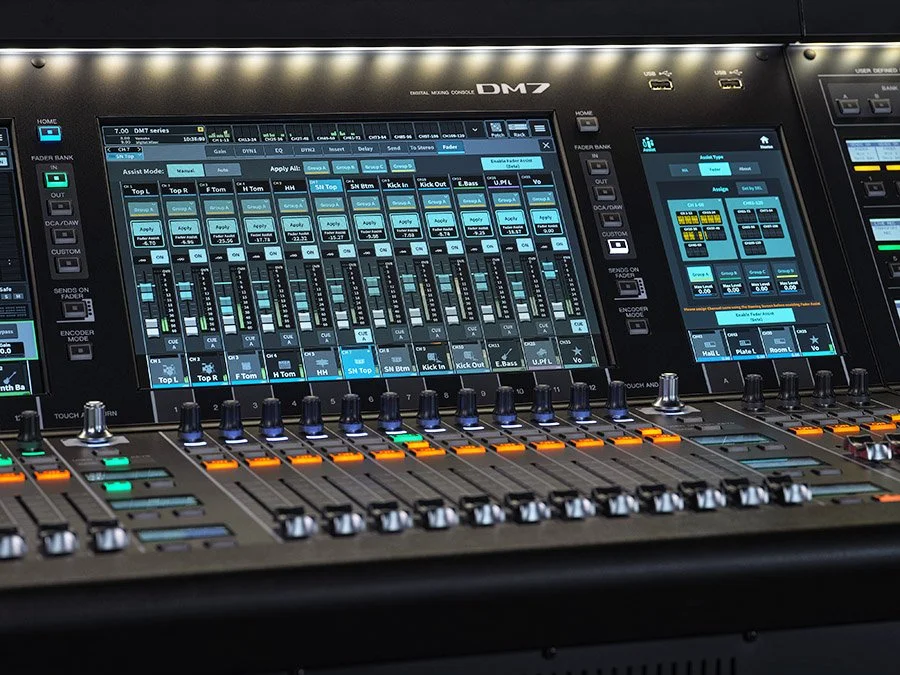

    • First-of-its-kind AI Assist Functions

  • WORKSURFACE

    • Faders

      • 24 + 4 motorized faders (main DM7 surface)

      • DM7-EX adds additional physical controls (via Control expansion): extra faders, encoders, jog wheel, monitor controls

    • Displays

      2 × 12.1" multi-touch screens

      • 1 × 7" multi-touch screen

    • Encoders / Controls

      • Touch & Turn rotary encoders

      • Channel/screen encoders

      • User-defined knobs (4 encoders under utility screen)

    • User Defined Keys

      • Surface: 12 keys (6 × 4 banks)

      • On-screen: 12 keys (12 × 4 banks)

    • Channel Control

      • Selected Channel view + overview workflow

      • Custom fader banks

      • DCA rollout (24 DCA groups)

    • Other Surface Features

      • Arm rest

      • Shift keys

      • No dedicated channel name displays (on-screen only)

    REAR

    • Analog I/O

      • 32 × analog inputs

      • 16 × analog outputs

    • Digital Audio

      • Dante: 144 in / 144 out (Primary / Secondary redundant)

      • AES/EBU:

        • 2 inputs (4 ch, SRC)

        • 2 outputs (4 ch, SRC)

    • USB

      • USB to Host (Type-C, 18×18 audio interface)

      • USB to Device ×2 (record/playback, file ops)

    • Network / Control

      • Ethernet (control + OSC server)

      • GPI: 5 in / 5 out

      • Clock / Sync

        • Word Clock In/Out

        • Timecode In

      • Expansion

        • 1 × PY expansion slot

      • Other

        • Headphone output

        • Dual AC inputs (redundant power supply built-in)

    Options

    • Control Expansion (EX system)

      • Adds:

        • Extra faders

        • User-defined control section

        • Jog wheel (DAW control)

        • Scene memory controls

        • Panner joystick

        • Monitor control section

    • Software Packages (included with EX)

      • Broadcast Package:

        • 5.1 surround

        • Mix Minus

        • Audio Follow Video

        • Loudness meter

      • Theatre Package:

        • Actor Library

        • DCA Scene Grid

        • AFC Image control

    • Apps / Software

      • DM7 Editor (Win/Mac)

      • StageMix

      • MonitorMix

      • ProVisionaire Control / Touch

      • Nuendo Live integration

    Signal Processing

    • Mixing Architecture

      • 120 mono input channels

      • 48 mix buses

      • 12 matrix buses

      • 2 stereo + 1 mono bus

      • 2 cue buses

    • Channel Processing

      • EQ

        • Input: 4-band full parametric EQ

        • Output: 8-band full parametric EQ

      • Filters

        • HPF: 20 Hz – 2 kHz

        • LPF: 20 Hz – 20 kHz

      • Dynamics

        • Comp, Expander, Gate, Ducking, De-esser

        • FET limiter, Diode bridge compressor

      • Delay

        • Input & output delay: up to 1000 ms

      • Automixing

        • Dan Dugan automixer (up to 64 channels)

      • Inserts

        • 1 insert point per channel

        • 4 plugin slots per insert

    • Rack Processing

      • Premium Rack

        • 64 DSP resources

        • Plugins include:

          • Portico 5033 / 5043

          • U76, Opt-2A, Comp276

          • Dynamic EQ, REV-X, DaNSe, etc.

      • Effect Rack

        • 16 DSP units

        • 43 effect types

      • EQ Rack

        • 32 DSP

        • 31-band GEQ / Flex15GEQ / 8-band PEQ

    • Additional Processing Features

      • Gain compensation

      • RTA overlay

      • Delay compensation

      • Virtual soundcheck

      • OSC control server

      • Wireless mic monitoring

    Audio Specifications

    • Sample Rate

      • Up to 96 kHz

    • Bit Depth

      • 24-bit / 32-bit (internal processing typical for Yamaha DSP)

    • Dante Audio

      • 144 × 144 channels @ up to 96 kHz

    • USB Audio Interface

      • 18 in / 18 out

    • Head Amp / Gain

      • Digital gain: –96 dB to +24 dB

    • Latency

      • Low-latency DSP + Dante (dependent on network settings)

    Physical

    • Dimensions (DM7 base console)

    • Width: 793 mm (31.3")

      • Height: 324 mm (12.8")

      • Depth: 564 mm (22.2")

    • Weight

      • 23.5 kg (51.8 lb)

    • Power

      • Dual redundant PSU (V-lock AC inputs)

      • Power consumption: ~240 W

    • Build / Design

      • Integrated LED strip lighting

      • No external lamp connector

      • Desktop form factor (non rack-mount)

Available options

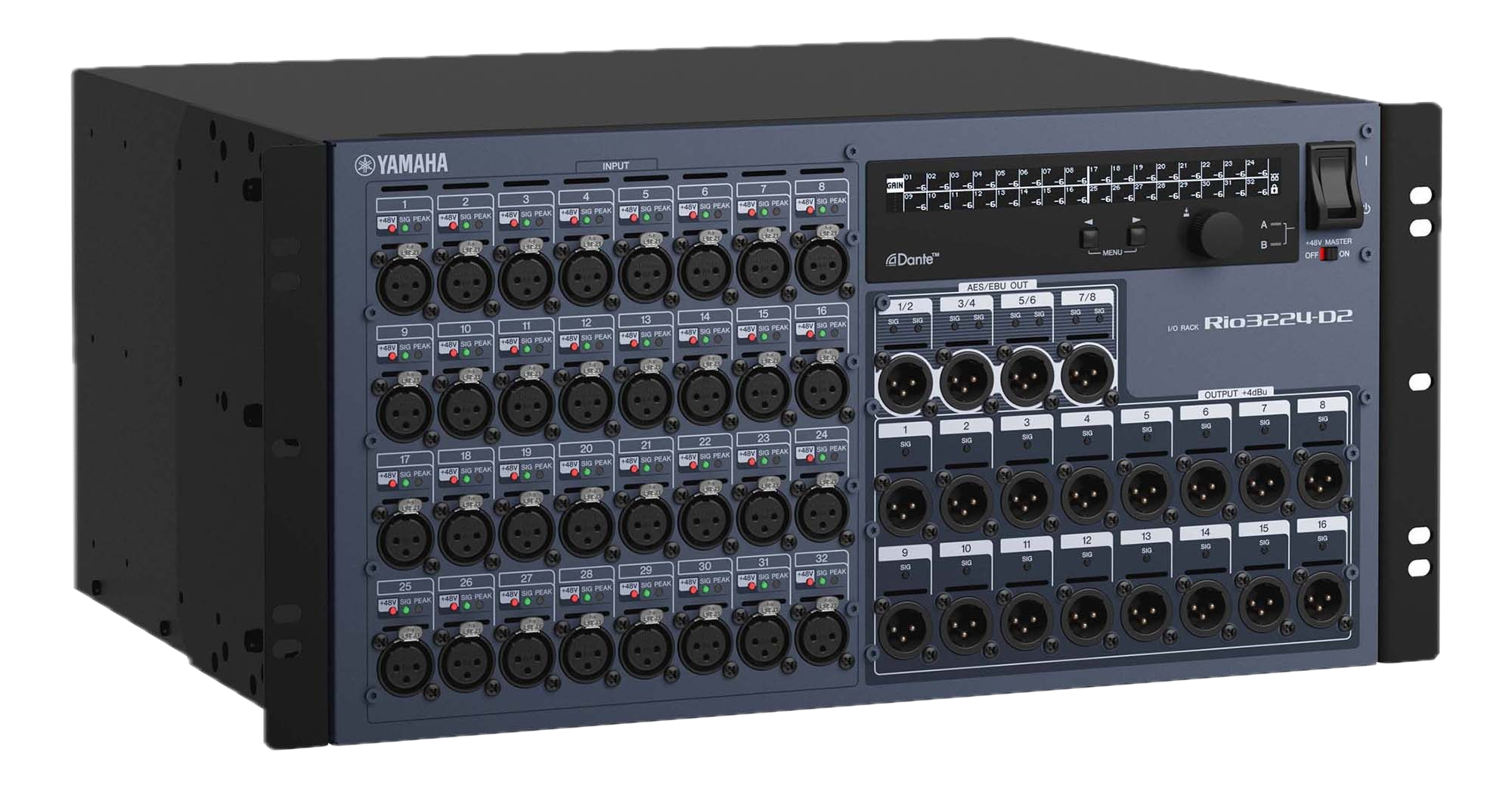

  • A Yamaha Rio3224-D2 audio mixer rack with multiple input and output connections, knobs, and switches.

    RIO3224-D2

    Features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

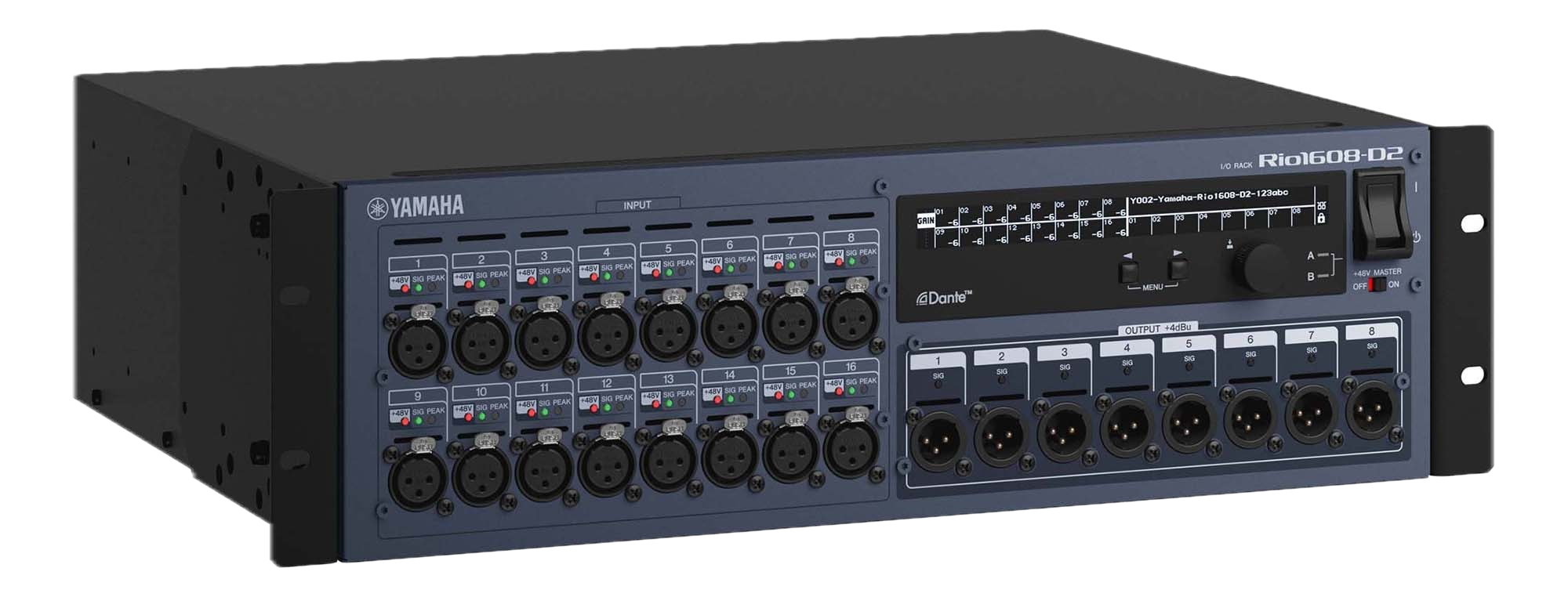

  • A Yamaha Rio 1608-D2 audio AD/DA converter and routing unit with various input and output channels, control knobs, and indicator LEDs.

    RIO1608-D2

    Features 16 analog inputs and 8 analog outputs, and is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. The Rio1608-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

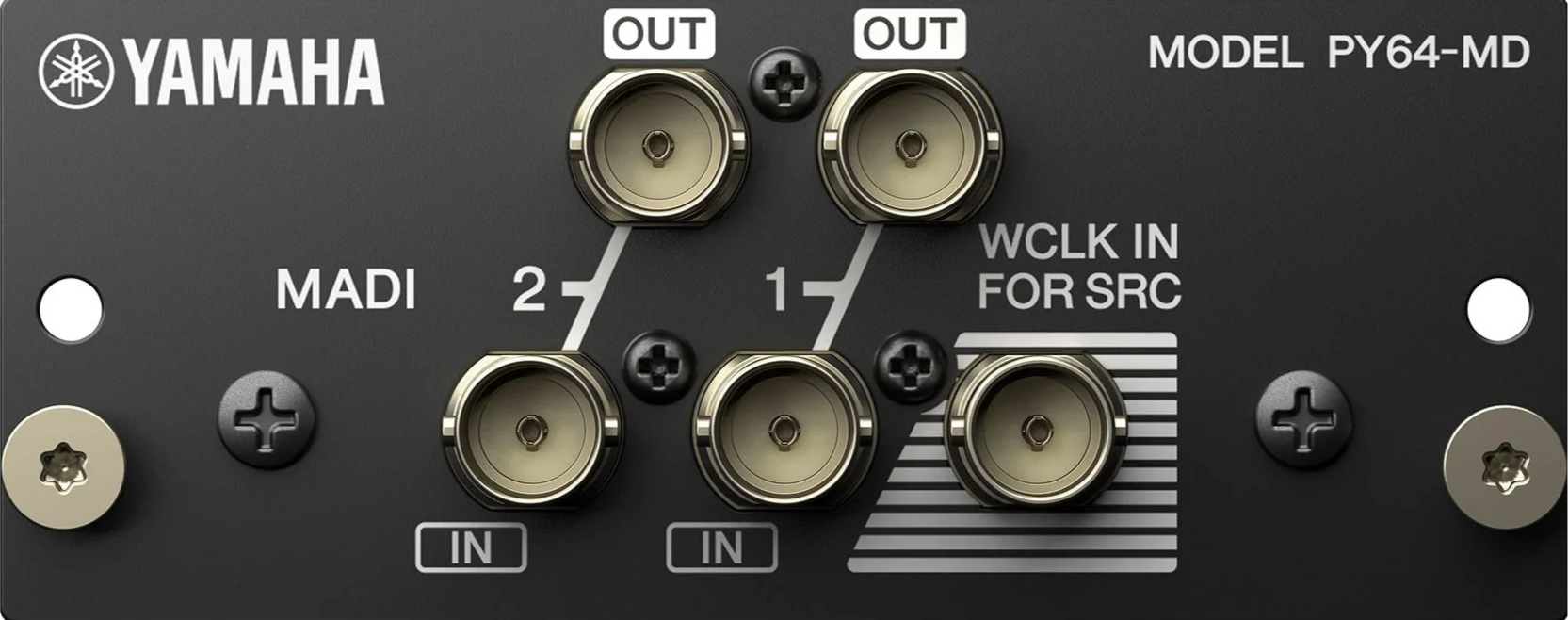

  • Yamaha audio device model PY64-MD with output and input ports, labeled 'OUT', 'MADI', 'IN', and 'WCLK IN FOR SRC'.

    PY64-MD MADI

    The Yamaha PY64-MD digital interface card adds 64 bidirectional channels of MADI connectivity to your DM7 or DM7C digital mixer. You also get a dedicated word clock port for sample rate conversion.

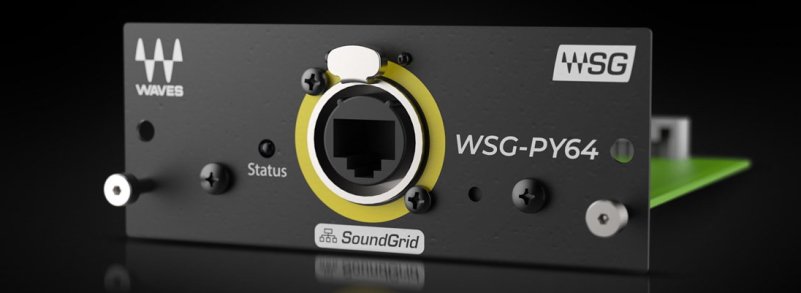

  • Close-up of audio equipment module labeled WSG-PY64 from Waves, featuring an Ethernet port, status indicator, and mounting brackets.

    WSG-PY64 I/O Card

    With a setup consisting of a WSG-PY64-equipped DM7 console, a Waves SoundGrid DSP server, and a Mac or PC, you can now process 64 audio channels using Waves’ vast catalog of industry-leading EQs, compressors, effects, analog emulations, unique problem solvers, and more

  • Close-up of a professional electronic audio device labeled 'Superrack Livebox D' with a digital display, glowing logo, and power button.

    Waves

    Waves’ SoundGrid technology enables you to run Waves plugins in real time and with super-low latency on your Yamaha console, allowing maximum plugin control, reliably fast processing speeds and the ultimate live sound performance for FOH, Monitor, Broadcast and Theatre engineers.

  • A black audio device with a yellow mesh speaker grill, a display screen showing IP addresses, USB ports, and control knobs, with a yellow logo on the right side.

    Fourier transform

    The transform.engine and transform.go are low-latency, reliable plugin hosts, with the ability to host any Windows 10 compatible VST3 plugins that can be installed and licensed offline.
